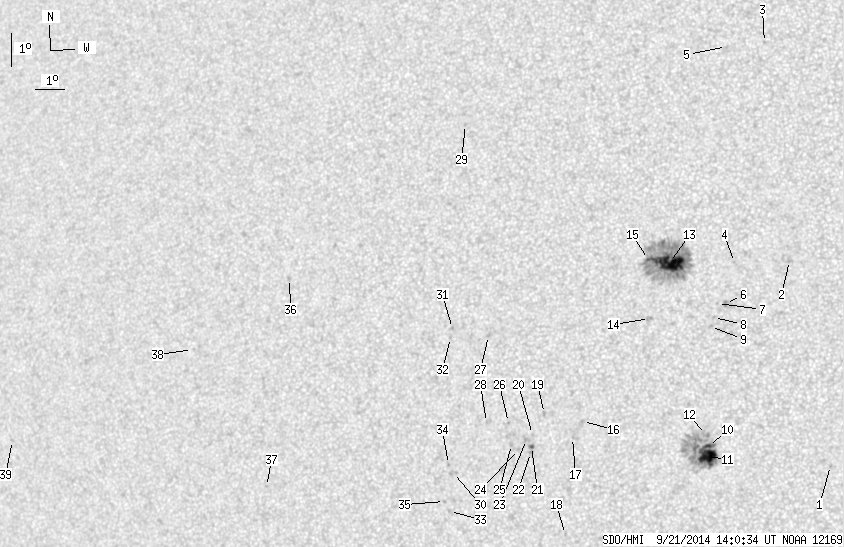

SDO HMI 2014-09-21 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.24 | 299.80 | 29.41 | 157.91 | 8.71 | 289.53 | -19.49 | 83.81 | 0.3361 | -322.7 | -249.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.72 | 4.98 | 295.24 | -13.78 | 97.87 | 0.2406 | 897.0 | 695.9 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 11.11 | 293.73 | -15.29 | 73.86 | 0.2705 | -845.0 | -578.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 17.70 | 292.45 | -16.57 | 55.13 | 0.3327 | -718.0 | -530.7 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 11.00 | 291.98 | -17.04 | 75.60 | 0.2983 | -720.0 | -578.5 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 17.53 | 291.21 | -17.81 | 57.30 | 0.3482 | -725.0 | -542.0 | |
| 0.00 | 2.57 | 0.00 | 1.33 | 9.75 | 291.76 | -17.26 | 79.85 | 0.2983 | -882.0 | -750.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 9.74 | 291.51 | -17.51 | 79.99 | 0.3025 | -646.0 | -470.0 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 9.32 | 291.40 | -17.62 | 81.44 | 0.3034 | -722.0 | -554.7 | |
| 0.00 | 1.59 | 0.00 | 0.83 | 9.04 | 291.32 | -17.70 | 82.36 | 0.3043 | -741.0 | -604.2 | |
| 3.19 | 79.26 | 1.66 | 41.26 | 5.43 | 291.40 | -17.62 | 94.32 | 0.3036 | -1003.9 | -431.3 | |
| 20.63 | -10.00 | 10.73 | -10.00 | 5.13 | 291.38 | -17.65 | 95.30 | 0.3046 | -1084.3 | 999999 | |
| 0.00 | 3.63 | 0.00 | 1.89 | 5.79 | 291.29 | -17.73 | 93.11 | 0.3047 | -338.0 | -444.1 | |
| 31.35 | 165.96 | 16.45 | 87.14 | 10.92 | 289.89 | -19.13 | 77.07 | 0.3316 | -1130.0 | -390.2 | |
| 0.00 | 2.92 | 0.00 | 1.54 | 9.21 | 289.35 | -19.67 | 82.37 | 0.3367 | 793.0 | 658.8 | |
| 0.27 | -13.00 | 0.14 | -13.00 | 10.98 | 289.20 | -19.82 | 77.22 | 0.3427 | -720.0 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.75 | 6.02 | 287.33 | -21.69 | 91.49 | 0.3693 | 813.0 | 656.6 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 5.53 | 287.02 | -22.00 | 92.76 | 0.3749 | 720.0 | 603.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 2.59 | 286.87 | -22.15 | 100.37 | 0.3845 | 681.0 | 552.8 | |
| 0.00 | 1.86 | 0.00 | 1.00 | 6.21 | 286.08 | -22.94 | 90.79 | 0.3892 | 735.0 | 574.5 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 5.56 | 285.71 | -23.31 | 92.38 | 0.3959 | 823.0 | 617.5 | |
| 0.80 | 1.68 | 0.43 | 0.91 | 5.19 | 285.69 | -23.33 | 93.29 | 0.3967 | 968.3 | 867.0 | |
| 0.00 | 1.42 | 0.00 | 0.76 | 5.01 | 285.67 | -23.36 | 93.74 | 0.3975 | 783.0 | 675.0 | |
| 0.00 | 3.90 | 0.00 | 2.10 | 5.40 | 285.52 | -23.50 | 92.74 | 0.3992 | 859.0 | 685.0 | |
| 0.00 | 1.42 | 0.00 | 0.77 | 5.08 | 285.27 | -23.75 | 93.45 | 0.4037 | 706.0 | 568.5 | |
| 0.00 | 1.95 | 0.00 | 1.06 | 5.22 | 285.03 | -23.99 | 93.05 | 0.4072 | 785.0 | 654.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 5.88 | 284.90 | -24.12 | 91.41 | 0.4083 | 752.0 | 648.4 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 8.46 | 284.09 | -24.93 | 85.11 | 0.4202 | 744.0 | 525.0 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 5.84 | 284.17 | -24.85 | 91.37 | 0.4199 | 790.0 | 644.1 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 14.78 | 282.69 | -26.33 | 71.14 | 0.4551 | -795.0 | -572.2 | |
| 0.00 | 3.28 | 0.00 | 1.80 | 4.28 | 283.13 | -25.89 | 94.76 | 0.4388 | 652.0 | 606.6 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 8.61 | 282.86 | -26.16 | 84.84 | 0.4395 | 721.0 | 626.3 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 8.33 | 282.82 | -26.20 | 85.46 | 0.4401 | 670.0 | 555.9 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 3.10 | 283.03 | -25.99 | 97.39 | 0.4431 | 610.0 | 541.2 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 4.51 | 282.96 | -26.07 | 94.18 | 0.4410 | 624.0 | 545.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 3.39 | 282.86 | -26.16 | 96.67 | 0.4450 | 702.0 | 577.7 | |
| 0.00 | 1.77 | 0.00 | 1.03 | 9.78 | 277.07 | -31.95 | 82.81 | 0.5278 | 597.0 | 429.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 3.48 | 276.69 | -32.33 | 94.66 | 0.5377 | 617.0 | 505.1 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 7.42 | 273.75 | -35.27 | 87.15 | 0.5755 | 594.0 | 512.4 | |
| 0.00 | 1.15 | 0.00 | 0.77 | 4.16 | 267.01 | -42.01 | 91.65 | 0.6701 | 679.0 | 553.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
