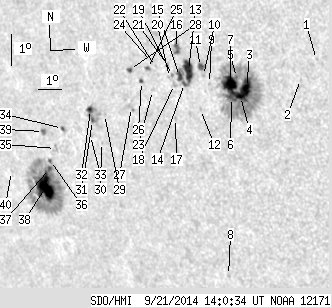

SDO HMI 2014-09-21 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.60 | 407.37 | 82.30 | 303.92 | -10.31 | 263.83 | -45.19 | 110.66 | 0.7458 | 198.0 | 48.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.57 | -7.53 | 271.55 | -37.47 | 110.62 | 0.6466 | 635.0 | 533.2 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -8.21 | 270.86 | -38.16 | 111.22 | 0.6583 | 688.0 | 489.4 | |
| 13.55 | 168.35 | 9.20 | 114.97 | -8.63 | 268.68 | -40.34 | 110.68 | 0.6864 | 996.5 | 296.6 | |
| 7.17 | -3.00 | 4.90 | -3.00 | -8.93 | 268.40 | -40.62 | 110.96 | 0.6910 | 857.5 | 999999 | |
| 1.77 | -3.00 | 1.21 | -3.00 | -8.35 | 268.32 | -40.70 | 110.12 | 0.6895 | 555.5 | 999999 | |
| 3.37 | -3.00 | 2.31 | -3.00 | -8.99 | 268.03 | -40.99 | 110.86 | 0.6956 | 568.1 | 999999 | |
| 18.77 | -3.00 | 12.88 | -3.00 | -8.62 | 268.04 | -40.98 | 110.35 | 0.6939 | 750.1 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.03 | -14.73 | 266.81 | -42.21 | 117.66 | 0.7358 | 561.0 | 447.4 | |
| 0.00 | 1.06 | 0.00 | 0.74 | -8.63 | 267.18 | -41.84 | 109.96 | 0.7039 | 347.0 | 304.1 | |
| 0.00 | 1.15 | 0.00 | 0.80 | -8.40 | 266.97 | -42.05 | 109.55 | 0.7055 | 633.0 | 521.2 | |
| 2.66 | 3.99 | 1.85 | 2.78 | -8.12 | 266.88 | -42.14 | 109.14 | 0.7054 | 805.2 | 687.6 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -9.48 | 266.69 | -42.33 | 110.86 | 0.7132 | -146.0 | -131.0 | |
| 13.02 | 29.84 | 9.16 | 21.05 | -8.29 | 266.36 | -42.66 | 109.13 | 0.7121 | 778.9 | 467.9 | |
| 1.42 | -13.00 | 1.00 | -13.00 | -8.72 | 266.14 | -42.88 | 109.60 | 0.7163 | 541.6 | 999999 | |
| 3.81 | -13.00 | 2.70 | -13.00 | -8.51 | 265.96 | -43.06 | 109.25 | 0.7176 | 507.8 | 999999 | |
| 3.19 | 7.26 | 2.25 | 5.12 | -7.64 | 265.95 | -43.07 | 108.09 | 0.7143 | 651.7 | 467.5 | |
| 0.00 | 1.24 | 0.00 | 0.89 | -9.86 | 265.58 | -43.44 | 110.84 | 0.7272 | 366.0 | 286.1 | |
| 0.00 | 2.30 | 0.00 | 1.64 | -8.78 | 265.71 | -43.31 | 109.49 | 0.7215 | 321.0 | 265.3 | |
| 0.00 | 1.33 | 0.00 | 0.95 | -8.51 | 265.66 | -43.36 | 109.11 | 0.7209 | 399.0 | 333.5 | |
| 0.00 | 1.42 | 0.00 | 1.01 | -8.58 | 265.53 | -43.49 | 109.15 | 0.7227 | 264.0 | 161.6 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -8.18 | 265.50 | -43.52 | 108.61 | 0.7215 | 384.0 | 298.6 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -8.29 | 264.98 | -44.04 | 108.53 | 0.7279 | 459.0 | 363.8 | |
| 0.00 | 0.80 | 0.00 | 0.58 | -9.06 | 264.73 | -44.29 | 109.42 | 0.7335 | 268.0 | 174.8 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -8.14 | 264.83 | -44.19 | 108.28 | 0.7290 | 434.0 | 350.2 | |
| 1.15 | 2.30 | 0.83 | 1.67 | -8.38 | 264.62 | -44.40 | 108.50 | 0.7322 | 397.5 | 240.4 | |
| 1.15 | 1.95 | 0.84 | 1.42 | -8.81 | 264.30 | -44.72 | 108.93 | 0.7374 | 277.5 | 143.4 | |
| 0.00 | 2.92 | 0.00 | 2.17 | -9.68 | 263.72 | -45.30 | 109.79 | 0.7469 | -79.0 | 21.5 | |
| 1.59 | 3.10 | 1.17 | 2.28 | -8.48 | 263.83 | -45.19 | 108.30 | 0.7414 | -674.8 | -539.7 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -10.01 | 262.47 | -46.55 | 109.69 | 0.7616 | -308.0 | -234.3 | |
| 0.00 | 0.53 | 0.00 | 0.41 | -10.92 | 262.16 | -46.86 | 110.68 | 0.7682 | -581.0 | -561.0 | |
| 1.33 | 17.36 | 1.02 | 13.34 | -10.25 | 261.89 | -47.13 | 109.75 | 0.7686 | -702.9 | -484.6 | |
| 2.66 | -31.00 | 2.05 | -31.00 | -9.91 | 261.86 | -47.16 | 109.31 | 0.7677 | -818.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -10.74 | 261.70 | -47.32 | 110.27 | 0.7723 | -661.0 | -601.0 | |
| 0.89 | 2.30 | 0.70 | 1.83 | -10.64 | 260.43 | -48.59 | 109.65 | 0.7849 | 119.3 | 51.3 | |
| 0.00 | 2.92 | 0.00 | 2.36 | -11.31 | 259.95 | -49.07 | 110.27 | 0.7920 | -622.0 | -568.1 | |
| 0.80 | 143.29 | 0.65 | 118.90 | -11.72 | 259.62 | -49.40 | 110.64 | 0.7967 | -640.7 | -176.0 | |
| 1.77 | -36.00 | 1.45 | -36.00 | -11.99 | 259.50 | -49.52 | 110.91 | 0.7987 | -865.0 | 999999 | |
| 30.11 | -36.00 | 24.98 | -36.00 | -12.62 | 259.15 | -49.88 | 111.52 | 0.8043 | -641.1 | 999999 | |
| 1.42 | 2.83 | 1.15 | 2.30 | -10.82 | 259.50 | -49.52 | 109.51 | 0.7949 | 481.8 | 339.1 | |
| 0.00 | 1.33 | 0.00 | 1.14 | -12.27 | 257.58 | -51.44 | 110.51 | 0.8180 | -462.0 | -375.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
