SDO HMI 2014-09-21 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.87 | 433.64 | 72.47 | 318.85 | -10.24 | 264.04 | -44.43 | 110.90 | 0.7371 | 243.3 | 38.8 | |
|
previous
or next observation for the same group /

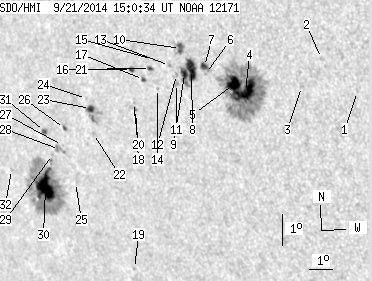

back to the solar disc SDO HMI 2014-09-21 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.56 | -8.45 | 272.88 | -35.59 | 113.04 | 0.6279 | 519.0 | 452.7 | |
| 0.00 | 1.42 | 0.00 | 0.91 | -7.52 | 271.62 | -36.85 | 110.93 | 0.6389 | 573.0 | 529.9 | |
| 0.00 | 1.42 | 0.00 | 0.93 | -8.46 | 270.75 | -37.72 | 111.81 | 0.6541 | 637.0 | 525.8 | |
| 24.97 | 188.69 | 16.88 | 127.70 | -8.79 | 268.51 | -39.96 | 111.09 | 0.6826 | 948.0 | 296.9 | |
| 15.32 | -4.00 | 10.41 | -4.00 | -8.61 | 268.06 | -40.41 | 110.61 | 0.6872 | 801.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.92 | -8.35 | 266.96 | -41.51 | 109.74 | 0.6990 | 630.0 | 606.3 | |
| 2.92 | 6.11 | 2.02 | 4.21 | -8.14 | 266.94 | -41.53 | 109.44 | 0.6983 | 820.7 | 696.8 | |
| 13.46 | 29.31 | 9.38 | 20.47 | -8.28 | 266.39 | -42.08 | 109.38 | 0.7053 | 796.3 | 465.3 | |
| 4.96 | -8.00 | 3.47 | -8.00 | -8.43 | 266.08 | -42.39 | 109.44 | 0.7095 | 555.4 | 999999 | |
| 3.36 | 10.63 | 2.35 | 7.43 | -7.66 | 266.02 | -42.45 | 108.37 | 0.7072 | 707.3 | 289.2 | |
| 0.00 | 3.01 | 0.00 | 2.13 | -8.77 | 265.70 | -42.77 | 109.72 | 0.7152 | 388.0 | 254.4 | |
| 0.00 | 1.59 | 0.00 | 1.12 | -8.49 | 265.74 | -42.73 | 109.36 | 0.7136 | 453.0 | 336.7 | |
| 0.00 | 1.51 | 0.00 | 1.06 | -8.23 | 265.49 | -42.98 | 108.91 | 0.7155 | 381.0 | 296.1 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -9.00 | 264.87 | -43.60 | 109.65 | 0.7255 | 398.0 | 263.2 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -8.10 | 264.84 | -43.63 | 108.45 | 0.7225 | 356.0 | 304.4 | |
| 1.24 | 2.92 | 0.89 | 2.10 | -8.39 | 264.67 | -43.80 | 108.77 | 0.7255 | 421.8 | 271.9 | |
| 1.06 | 2.30 | 0.77 | 1.66 | -8.77 | 264.32 | -44.15 | 109.11 | 0.7309 | 364.4 | 257.7 | |
| 0.00 | 1.51 | 0.00 | 1.10 | -9.75 | 263.81 | -44.66 | 110.15 | 0.7402 | 425.0 | 328.5 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -14.90 | 262.61 | -45.86 | 115.98 | 0.7737 | 253.0 | 333.4 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -9.53 | 263.76 | -44.71 | 109.86 | 0.7399 | 343.0 | 231.7 | |
| 1.68 | 3.10 | 1.23 | 2.26 | -8.50 | 263.84 | -44.63 | 108.56 | 0.7352 | -701.2 | -543.8 | |
| 0.00 | 1.59 | 0.00 | 1.22 | -10.68 | 261.79 | -46.68 | 110.47 | 0.7654 | -681.0 | -530.8 | |
| 3.54 | 17.09 | 2.70 | 13.01 | -9.90 | 261.81 | -46.66 | 109.50 | 0.7624 | -818.8 | -534.1 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -9.59 | 261.69 | -46.78 | 109.07 | 0.7626 | -433.0 | -396.9 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -12.34 | 260.60 | -47.87 | 112.00 | 0.7836 | -547.0 | -556.7 | |
| 1.06 | 2.04 | 0.84 | 1.60 | -10.65 | 260.48 | -47.99 | 109.89 | 0.7788 | 117.8 | 131.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -11.20 | 260.27 | -48.20 | 110.48 | 0.7829 | -655.0 | -604.7 | |
| 0.00 | 5.76 | 0.00 | 4.58 | -11.34 | 260.10 | -48.37 | 110.59 | 0.7851 | -702.0 | -615.6 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -11.54 | 259.73 | -48.74 | 110.67 | 0.7895 | -592.0 | -526.6 | |
| 24.44 | 141.32 | 20.04 | 116.00 | -12.64 | 259.12 | -49.35 | 111.75 | 0.7993 | -722.6 | -220.4 | |
| 1.86 | 3.45 | 1.49 | 2.77 | -10.83 | 259.51 | -48.96 | 109.74 | 0.7893 | 448.1 | 278.7 | |
| 0.00 | 0.71 | 0.00 | 0.60 | -12.22 | 257.59 | -50.88 | 110.65 | 0.8126 | -419.0 | -332.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
