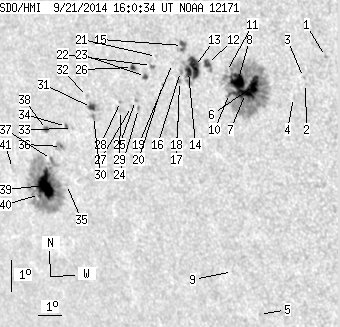

SDO HMI 2014-09-21 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.55 | 435.69 | 78.35 | 317.92 | -10.30 | 263.96 | -43.96 | 111.19 | 0.7322 | 218.5 | 50.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.73 | -7.54 | 271.63 | -36.28 | 111.28 | 0.6319 | 633.0 | 526.8 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -8.44 | 270.78 | -37.14 | 112.11 | 0.6469 | 614.0 | 541.4 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -8.26 | 270.72 | -37.20 | 111.82 | 0.6467 | 621.0 | 554.3 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -8.92 | 270.26 | -37.66 | 112.50 | 0.6556 | 702.0 | 610.8 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -16.03 | 267.61 | -40.31 | 120.36 | 0.7229 | 566.0 | 485.4 | |
| 12.66 | 183.80 | 8.45 | 123.32 | -8.66 | 268.77 | -39.15 | 111.33 | 0.6723 | 1098.1 | 319.9 | |
| 12.57 | -6.00 | 8.46 | -6.00 | -8.94 | 268.38 | -39.54 | 111.52 | 0.6783 | 849.0 | 999999 | |
| 17.88 | -6.00 | 12.05 | -6.00 | -8.62 | 268.11 | -39.81 | 110.93 | 0.6801 | 805.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -14.70 | 266.81 | -41.11 | 118.24 | 0.7242 | 573.0 | 463.5 | |
| 0.71 | -6.00 | 0.48 | -6.00 | -8.99 | 267.74 | -40.18 | 111.26 | 0.6861 | 321.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -8.31 | 267.71 | -40.21 | 110.30 | 0.6835 | -171.0 | -143.8 | |
| 3.28 | 7.35 | 2.24 | 5.02 | -8.12 | 266.97 | -40.95 | 109.68 | 0.6914 | 834.2 | 667.6 | |
| 13.10 | 33.20 | 9.04 | 22.97 | -8.26 | 266.42 | -41.50 | 109.62 | 0.6984 | 848.0 | 381.0 | |
| 5.22 | -13.00 | 3.62 | -13.00 | -8.43 | 266.15 | -41.76 | 109.73 | 0.7023 | 612.7 | 999999 | |
| 3.19 | 7.26 | 2.21 | 5.03 | -7.64 | 266.01 | -41.91 | 108.59 | 0.7008 | 682.4 | 463.1 | |
| 0.00 | 2.04 | 0.00 | 1.42 | -8.46 | 265.82 | -42.10 | 109.62 | 0.7063 | 411.0 | 362.4 | |
| 0.00 | 1.86 | 0.00 | 1.30 | -8.78 | 265.74 | -42.18 | 110.00 | 0.7086 | 411.0 | 308.6 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -9.80 | 265.54 | -42.38 | 111.26 | 0.7150 | 282.0 | 268.3 | |
| 0.00 | 1.06 | 0.00 | 0.74 | -8.24 | 265.52 | -42.40 | 109.18 | 0.7088 | 340.0 | 256.9 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -8.94 | 265.01 | -42.91 | 109.88 | 0.7175 | 354.0 | 249.2 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -8.08 | 264.88 | -43.04 | 108.68 | 0.7156 | 293.0 | 263.2 | |
| 0.00 | 2.66 | 0.00 | 1.89 | -8.38 | 264.63 | -43.29 | 108.97 | 0.7196 | 420.0 | 371.6 | |
| 1.59 | 3.01 | 1.14 | 2.16 | -8.75 | 264.32 | -43.60 | 109.32 | 0.7245 | 426.6 | 245.9 | |
| 0.00 | 1.24 | 0.00 | 0.90 | -9.78 | 263.86 | -44.06 | 110.47 | 0.7338 | 447.0 | 371.5 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -9.54 | 263.77 | -44.15 | 110.12 | 0.7338 | 428.0 | 340.1 | |
| 1.95 | 3.45 | 1.41 | 2.49 | -8.51 | 263.81 | -44.11 | 108.79 | 0.7295 | -673.4 | -552.8 | |
| 0.00 | 1.24 | 0.00 | 0.90 | -9.75 | 263.57 | -44.35 | 110.29 | 0.7369 | -223.0 | -186.7 | |
| 0.00 | 1.33 | 0.00 | 0.98 | -9.63 | 263.11 | -44.81 | 109.94 | 0.7414 | -282.0 | -337.3 | |
| 0.00 | 1.42 | 0.00 | 1.04 | -9.92 | 263.06 | -44.86 | 110.29 | 0.7430 | -343.0 | -381.5 | |
| 0.00 | 2.04 | 0.00 | 1.54 | -10.22 | 261.83 | -46.09 | 110.14 | 0.7575 | -845.0 | -746.8 | |
| 3.19 | 7.97 | 2.40 | 6.01 | -9.94 | 261.79 | -46.13 | 109.77 | 0.7569 | -829.0 | -588.2 | |
| 0.00 | 1.51 | 0.00 | 1.14 | -9.60 | 261.67 | -46.24 | 109.31 | 0.7569 | -502.0 | -399.7 | |
| 0.00 | 1.15 | 0.00 | 0.89 | -10.69 | 260.79 | -47.13 | 110.29 | 0.7701 | -408.0 | -313.2 | |
| 0.80 | 2.12 | 0.62 | 1.65 | -10.65 | 260.53 | -47.39 | 110.14 | 0.7727 | 193.2 | 188.7 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -12.52 | 260.10 | -47.82 | 112.24 | 0.7838 | -283.0 | -304.2 | |
| 0.62 | 6.64 | 0.49 | 5.23 | -11.31 | 260.16 | -47.76 | 110.80 | 0.7788 | -782.0 | -619.3 | |
| 1.15 | 145.20 | 0.92 | 117.89 | -11.78 | 259.59 | -48.33 | 111.13 | 0.7862 | -783.0 | -222.2 | |
| 1.86 | 4.07 | 1.47 | 3.23 | -10.83 | 259.57 | -48.35 | 109.98 | 0.7831 | 428.7 | 191.0 | |
| 27.27 | -37.00 | 22.12 | -37.00 | -12.65 | 259.09 | -48.83 | 111.97 | 0.7942 | -768.8 | 999999 | |
| 1.51 | -37.00 | 1.23 | -37.00 | -12.97 | 258.72 | -49.20 | 112.20 | 0.7989 | -87.1 | 999999 | |
| 0.00 | 2.83 | 0.00 | 2.36 | -12.25 | 257.62 | -50.30 | 110.92 | 0.8071 | -439.0 | -344.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
