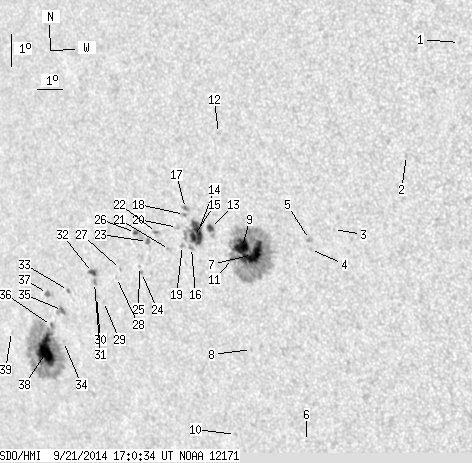

SDO HMI 2014-09-21 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.24 | 436.23 | 76.25 | 315.30 | -10.32 | 264.01 | -43.36 | 111.50 | 0.7256 | 211.2 | 80.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.77 | -1.72 | 276.68 | -30.69 | 104.87 | 0.5299 | 432.0 | 280.7 | |
| 0.00 | 1.68 | 0.00 | 1.02 | -5.30 | 274.65 | -32.72 | 109.90 | 0.5745 | 447.0 | 436.5 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -7.79 | 271.77 | -35.59 | 112.06 | 0.6245 | 627.0 | 568.8 | |
| 0.00 | 1.15 | 0.00 | 0.74 | -8.48 | 270.83 | -36.53 | 112.53 | 0.6397 | 698.0 | 567.3 | |
| 0.00 | 3.36 | 0.00 | 2.16 | -8.17 | 270.83 | -36.54 | 112.07 | 0.6382 | 692.0 | 591.2 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -14.65 | 269.71 | -37.66 | 120.28 | 0.6868 | 512.0 | 421.2 | |
| 23.46 | 179.35 | 15.59 | 119.32 | -8.82 | 268.56 | -38.81 | 111.73 | 0.6690 | 1011.3 | 352.4 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -11.84 | 268.06 | -39.31 | 115.58 | 0.6897 | 488.0 | 410.6 | |
| 15.32 | -7.00 | 10.22 | -7.00 | -8.59 | 268.19 | -39.18 | 111.23 | 0.6724 | 891.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -14.65 | 266.85 | -40.52 | 118.52 | 0.7176 | 561.0 | 427.6 | |
| 1.77 | -7.00 | 1.19 | -7.00 | -9.00 | 267.74 | -39.62 | 111.56 | 0.6796 | 341.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -5.15 | 267.60 | -39.77 | 106.04 | 0.6653 | 699.0 | 590.9 | |
| 3.28 | 7.52 | 2.22 | 5.10 | -8.13 | 266.98 | -40.39 | 109.98 | 0.6848 | 843.6 | 664.1 | |
| 14.34 | 31.60 | 9.81 | 21.67 | -8.30 | 266.43 | -40.93 | 109.95 | 0.6920 | 861.1 | 353.1 | |
| 6.02 | -14.00 | 4.13 | -14.00 | -8.44 | 266.25 | -41.11 | 110.05 | 0.6947 | 668.8 | 999999 | |
| 0.00 | 3.01 | 0.00 | 2.08 | -8.79 | 266.13 | -41.24 | 110.47 | 0.6977 | 474.0 | 373.9 | |
| 0.80 | 3.19 | 0.55 | 2.18 | -7.59 | 266.04 | -41.33 | 108.78 | 0.6937 | 708.3 | 603.2 | |
| 0.44 | 1.77 | 0.30 | 1.22 | -7.78 | 265.97 | -41.39 | 109.02 | 0.6953 | 679.2 | 537.7 | |
| 0.00 | 2.12 | 0.00 | 1.47 | -8.76 | 265.76 | -41.60 | 110.25 | 0.7018 | 429.0 | 320.2 | |
| 0.00 | 2.57 | 0.00 | 1.78 | -8.21 | 265.63 | -41.73 | 109.45 | 0.7010 | 539.0 | 303.6 | |
| 0.00 | 2.30 | 0.00 | 1.61 | -8.93 | 265.21 | -42.16 | 110.22 | 0.7089 | 524.0 | 389.5 | |
| 0.00 | 2.83 | 0.00 | 1.99 | -8.44 | 264.74 | -42.63 | 109.35 | 0.7123 | 619.0 | 376.8 | |
| 1.15 | 3.28 | 0.82 | 2.32 | -8.76 | 264.32 | -43.05 | 109.58 | 0.7184 | 571.8 | 266.1 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -9.76 | 263.91 | -43.46 | 110.71 | 0.7270 | 577.0 | 471.2 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -9.58 | 263.85 | -43.51 | 110.45 | 0.7269 | 501.0 | 417.0 | |
| 1.42 | 5.67 | 1.01 | 4.04 | -8.52 | 263.85 | -43.52 | 109.06 | 0.7228 | -782.8 | -433.1 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -9.75 | 263.02 | -44.35 | 110.29 | 0.7368 | -455.0 | -409.1 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -10.02 | 262.80 | -44.57 | 110.54 | 0.7403 | -449.0 | -512.0 | |
| 0.00 | 1.33 | 0.00 | 0.99 | -10.83 | 262.08 | -45.28 | 111.26 | 0.7512 | -688.0 | -571.1 | |
| 0.00 | 2.92 | 0.00 | 2.19 | -10.70 | 261.80 | -45.57 | 110.97 | 0.7537 | -749.0 | -571.8 | |
| 0.62 | 1.95 | 0.46 | 1.46 | -10.26 | 261.80 | -45.57 | 110.42 | 0.7521 | -824.9 | -737.1 | |
| 2.74 | 4.51 | 2.05 | 3.37 | -9.95 | 261.77 | -45.60 | 110.01 | 0.7512 | -844.8 | -715.8 | |
| 0.62 | 1.68 | 0.48 | 1.29 | -10.62 | 260.57 | -46.79 | 110.35 | 0.7664 | 252.4 | 230.8 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -12.29 | 259.98 | -47.39 | 112.14 | 0.7786 | -527.0 | -478.7 | |
| 1.68 | 5.84 | 1.31 | 4.55 | -11.29 | 260.16 | -47.21 | 111.00 | 0.7731 | -767.9 | -640.7 | |
| 0.89 | 152.00 | 0.70 | 122.19 | -11.82 | 259.54 | -47.83 | 111.39 | 0.7814 | -739.9 | -202.0 | |
| 1.59 | 4.16 | 1.25 | 3.26 | -10.81 | 259.58 | -47.79 | 110.18 | 0.7773 | 483.5 | 184.3 | |
| 30.10 | -36.00 | 24.16 | -36.00 | -12.69 | 259.09 | -48.27 | 112.25 | 0.7889 | -825.0 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -12.20 | 257.57 | -49.80 | 111.05 | 0.8022 | -468.0 | -403.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
