SDO HMI 2014-09-21 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.53 | 0.00 | 12.04 | 13.49 | 350.64 | 43.83 | 282.48 | 0.6894 | -2.7 | -62.4 | |
|
previous
or next observation for the same group /

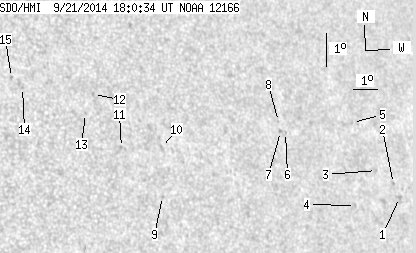

back to the solar disc SDO HMI 2014-09-21 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.66 | 0.00 | 2.03 | 11.53 | 356.90 | 50.08 | 279.15 | 0.7635 | -660.0 | -518.3 | |
| 0.00 | 1.06 | 0.00 | 0.81 | 11.98 | 356.72 | 49.91 | 279.74 | 0.7616 | -559.0 | -520.8 | |
| 0.00 | 0.89 | 0.00 | 0.67 | 12.44 | 356.03 | 49.21 | 280.36 | 0.7539 | -609.0 | -523.7 | |
| 0.00 | 1.06 | 0.00 | 0.78 | 11.48 | 354.81 | 48.00 | 279.11 | 0.7399 | -568.0 | -497.4 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 13.97 | 355.31 | 48.50 | 282.45 | 0.7466 | -514.0 | -449.2 | |
| 0.00 | 0.89 | 0.00 | 0.62 | 13.94 | 352.24 | 45.43 | 282.65 | 0.7109 | -455.0 | -450.5 | |
| 0.00 | 1.50 | 0.00 | 1.05 | 13.99 | 352.04 | 45.22 | 282.74 | 0.7085 | -721.0 | -580.6 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 14.30 | 352.03 | 45.21 | 283.18 | 0.7086 | -654.0 | -509.0 | |
| 0.00 | 1.06 | 0.00 | 0.68 | 12.44 | 346.73 | 39.91 | 280.99 | 0.6405 | 615.0 | 531.1 | |
| 0.00 | 2.12 | 0.00 | 1.37 | 13.92 | 346.98 | 40.16 | 283.25 | 0.6455 | 689.0 | 478.1 | |
| 0.00 | 1.15 | 0.00 | 0.73 | 14.04 | 345.39 | 38.58 | 283.69 | 0.6249 | 709.0 | 568.5 | |
| 0.00 | 1.24 | 0.00 | 0.78 | 15.72 | 344.64 | 37.82 | 286.54 | 0.6180 | 725.0 | 560.9 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 15.17 | 344.20 | 37.39 | 285.75 | 0.6112 | 485.0 | 430.2 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 16.13 | 341.95 | 35.14 | 287.94 | 0.5834 | 647.0 | 533.4 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 16.46 | 341.60 | 34.79 | 288.61 | 0.5795 | 830.0 | 685.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
