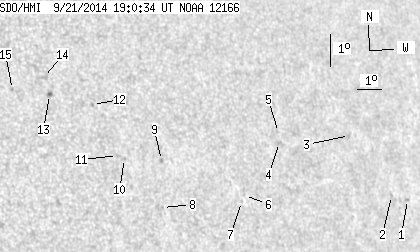

SDO HMI 2014-09-21 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 21.51 | 0.27 | 14.33 | 14.52 | 348.06 | 41.80 | 284.28 | 0.6654 | 192.4 | 153.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 1.04 | 11.76 | 357.48 | 51.21 | 279.43 | 0.7759 | -643.0 | -519.6 | |
| 0.00 | 1.15 | 0.00 | 0.89 | 11.95 | 356.74 | 50.48 | 279.69 | 0.7679 | -555.0 | -493.6 | |
| 0.00 | 1.86 | 0.00 | 1.39 | 13.92 | 355.27 | 49.01 | 282.35 | 0.7522 | -496.0 | -317.5 | |
| 0.00 | 1.24 | 0.00 | 0.88 | 14.00 | 352.06 | 45.80 | 282.70 | 0.7154 | -725.0 | -633.3 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 14.30 | 352.10 | 45.84 | 283.12 | 0.7161 | -454.0 | -466.0 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 12.54 | 350.19 | 43.92 | 280.78 | 0.6916 | 458.0 | 363.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 12.37 | 350.02 | 43.76 | 280.54 | 0.6895 | 317.0 | 416.0 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 12.46 | 346.74 | 40.48 | 280.95 | 0.6480 | 560.0 | 510.5 | |
| 0.00 | 2.04 | 0.00 | 1.33 | 13.87 | 346.99 | 40.73 | 283.09 | 0.6526 | 664.0 | 473.3 | |
| 0.00 | 1.06 | 0.00 | 0.68 | 14.05 | 345.52 | 39.26 | 283.59 | 0.6339 | 598.0 | 544.7 | |
| 0.00 | 1.59 | 0.00 | 1.01 | 14.16 | 345.27 | 39.01 | 283.80 | 0.6307 | 684.0 | 505.9 | |
| 0.00 | 1.06 | 0.00 | 0.67 | 15.77 | 344.62 | 38.35 | 286.49 | 0.6250 | 554.0 | 477.4 | |
| 0.44 | 2.30 | 0.27 | 1.43 | 16.19 | 343.01 | 36.75 | 287.58 | 0.6049 | 817.6 | 704.8 | |
| 0.00 | 4.51 | 0.00 | 2.80 | 16.73 | 342.89 | 36.63 | 288.48 | 0.6047 | 140.0 | 277.9 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 16.45 | 341.62 | 35.36 | 288.40 | 0.5872 | 797.0 | 686.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
