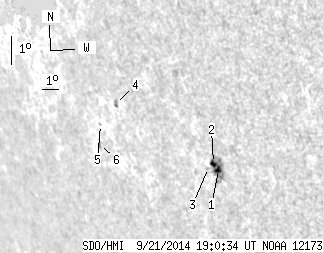

SDO HMI 2014-09-21 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.37 | 30.44 | 5.99 | 29.64 | -14.99 | 250.62 | -55.64 | 112.15 | 0.8621 | 237.1 | 159.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.45 | 22.66 | 3.24 | 21.28 | -15.28 | 252.09 | -54.17 | 112.95 | 0.8513 | 743.5 | 461.1 | |
| 2.92 | -1.00 | 2.75 | -1.00 | -15.11 | 251.89 | -54.37 | 112.68 | 0.8525 | 589.5 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.52 | -15.27 | 251.56 | -54.70 | 112.74 | 0.8558 | -300.0 | -181.4 | |
| 0.00 | 3.54 | 0.00 | 3.80 | -13.73 | 246.82 | -59.44 | 109.51 | 0.8893 | -559.0 | -499.3 | |
| 0.00 | 0.97 | 0.00 | 1.10 | -14.54 | 245.52 | -60.74 | 110.01 | 0.9005 | -442.0 | -388.7 | |
| 0.00 | 1.68 | 0.00 | 1.94 | -15.23 | 245.12 | -61.14 | 110.62 | 0.9047 | -360.0 | -345.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
