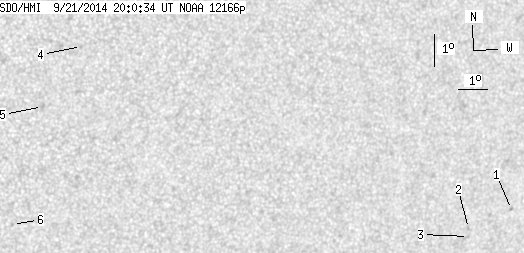

SDO HMI 2014-09-21 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.87 | 0.00 | 4.70 | -10.67 | 333.52 | 27.81 | 236.54 | 0.5424 | -41.5 | 14.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.98 | -12.11 | 341.36 | 35.65 | 241.77 | 0.6491 | 636.0 | 513.5 | |
| 0.00 | 1.77 | 0.00 | 1.13 | -12.59 | 339.81 | 34.10 | 240.00 | 0.6341 | 748.0 | 533.0 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -12.85 | 339.85 | 34.14 | 239.67 | 0.6362 | 670.0 | 594.6 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -6.07 | 325.93 | 20.22 | 237.39 | 0.4098 | -657.0 | -571.3 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -7.88 | 324.75 | 19.04 | 232.13 | 0.4112 | -845.0 | -721.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -11.55 | 324.00 | 18.29 | 224.45 | 0.4408 | -801.0 | -599.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
