SDO HMI 2014-09-21 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.28 | 0.00 | 7.76 | -17.00 | 286.36 | -19.35 | 143.60 | 0.5116 | 677.1 | 562.8 | |
|
previous
or next observation for the same group /

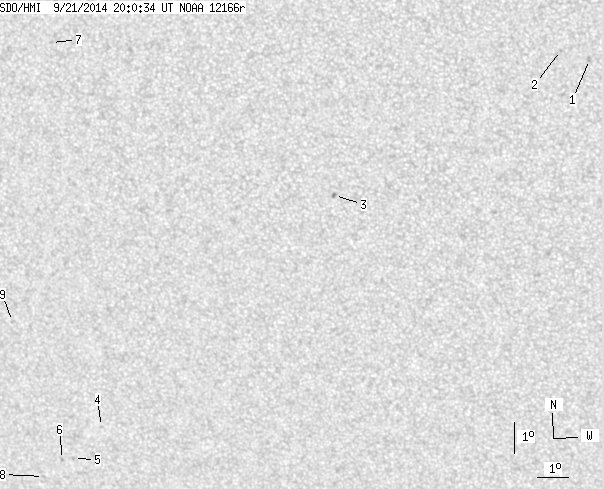

back to the solar disc SDO HMI 2014-09-21 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.21 | 0.00 | 1.15 | -9.43 | 299.34 | -6.37 | 158.87 | 0.3051 | 814.0 | 743.5 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.16 | 298.45 | -7.26 | 155.89 | 0.3066 | 795.0 | 595.6 | |
| 0.00 | 2.04 | 0.00 | 1.12 | -13.93 | 291.18 | -14.53 | 145.53 | 0.4320 | 911.0 | 764.0 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -21.96 | 282.45 | -23.26 | 142.43 | 0.6028 | 718.0 | 606.7 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -23.13 | 281.24 | -24.47 | 142.30 | 0.6252 | 594.0 | 441.6 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -23.19 | 280.83 | -24.88 | 141.91 | 0.6292 | 581.0 | 512.0 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -9.44 | 282.29 | -23.42 | 124.97 | 0.4804 | 728.0 | 555.1 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -23.82 | 280.01 | -25.70 | 141.70 | 0.6424 | 569.0 | 434.5 | |
| 0.00 | 1.59 | 0.00 | 0.98 | -18.55 | 279.89 | -25.82 | 135.55 | 0.5918 | 384.0 | 325.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
