SDO HMI 2014-09-21 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.36 | 30.19 | 9.59 | 28.84 | -15.00 | 250.75 | -54.96 | 112.39 | 0.8567 | 360.6 | 81.7 | |
|
previous
or next observation for the same group /

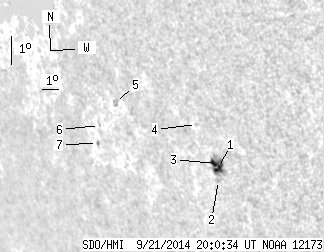

back to the solar disc SDO HMI 2014-09-21 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.55 | 20.27 | 6.06 | 18.75 | -15.25 | 252.09 | -53.62 | 113.11 | 0.8466 | 725.9 | 456.9 | |
| 0.00 | 3.01 | 0.00 | 2.81 | -15.68 | 251.92 | -53.79 | 113.54 | 0.8494 | -62.0 | 11.8 | |
| 3.81 | -1.00 | 3.53 | -1.00 | -15.14 | 251.92 | -53.79 | 112.92 | 0.8478 | 642.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.07 | -13.94 | 251.39 | -54.32 | 111.39 | 0.8488 | 224.0 | 301.4 | |
| 0.00 | 3.72 | 0.00 | 3.92 | -13.72 | 246.88 | -58.82 | 109.68 | 0.8847 | -599.0 | -514.9 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -14.60 | 245.51 | -60.20 | 110.23 | 0.8967 | -458.0 | -412.0 | |
| 0.00 | 1.77 | 0.00 | 2.00 | -15.23 | 245.09 | -60.62 | 110.77 | 0.9011 | -511.0 | -415.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
