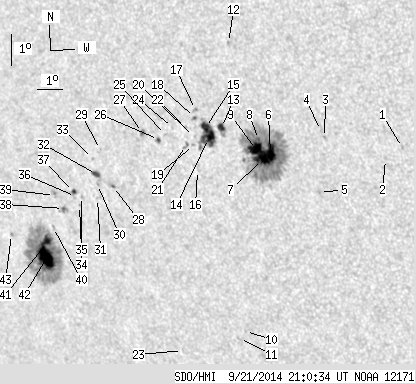

SDO HMI 2014-09-21 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.00 | 432.60 | 67.29 | 301.63 | -10.44 | 264.08 | -41.08 | 112.80 | 0.7005 | 229.6 | 69.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.69 | -8.24 | 273.76 | -31.40 | 115.53 | 0.5736 | 610.0 | 482.6 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -8.66 | 273.11 | -32.05 | 115.71 | 0.5844 | 672.0 | 525.3 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -8.12 | 270.94 | -34.22 | 113.41 | 0.6088 | 756.0 | 650.8 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -7.91 | 270.81 | -34.34 | 113.01 | 0.6093 | 611.0 | 502.3 | |
| 0.00 | 1.50 | 0.00 | 0.95 | -9.86 | 270.56 | -34.59 | 115.76 | 0.6233 | 682.0 | 572.9 | |
| 11.69 | 188.82 | 7.50 | 121.63 | -8.77 | 268.86 | -36.30 | 113.09 | 0.6383 | 1209.9 | 367.6 | |
| 12.30 | -6.00 | 7.95 | -6.00 | -8.98 | 268.53 | -36.63 | 113.20 | 0.6435 | 945.5 | 999999 | |
| 1.77 | -6.00 | 1.14 | -6.00 | -8.36 | 268.45 | -36.71 | 112.26 | 0.6413 | 870.8 | 999999 | |
| 13.90 | -6.00 | 8.98 | -6.00 | -8.68 | 268.33 | -36.82 | 112.66 | 0.6443 | 979.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -14.55 | 266.96 | -38.19 | 119.82 | 0.6921 | 597.0 | 487.5 | |
| 0.00 | 1.59 | 0.00 | 1.10 | -14.80 | 266.67 | -38.48 | 119.95 | 0.6967 | 252.0 | 340.8 | |
| 0.00 | 1.15 | 0.00 | 0.74 | -5.43 | 267.58 | -37.58 | 107.47 | 0.6387 | 625.0 | 565.5 | |
| 3.63 | 8.23 | 2.38 | 5.40 | -8.10 | 267.06 | -38.10 | 111.10 | 0.6571 | 887.9 | 682.9 | |
| 14.87 | 32.13 | 9.84 | 21.28 | -8.48 | 266.51 | -38.65 | 111.35 | 0.6656 | 834.7 | 468.2 | |
| 6.55 | -14.00 | 4.33 | -14.00 | -8.14 | 266.43 | -38.73 | 110.84 | 0.6650 | 861.8 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -9.52 | 265.94 | -39.22 | 112.50 | 0.6773 | 430.0 | 418.7 | |
| 0.00 | 1.77 | 0.00 | 1.17 | -7.61 | 266.10 | -39.06 | 109.91 | 0.6666 | 677.0 | 576.0 | |
| 0.53 | 1.59 | 0.35 | 1.06 | -7.86 | 266.03 | -39.13 | 110.24 | 0.6685 | 556.2 | 446.6 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -8.75 | 265.88 | -39.27 | 111.40 | 0.6743 | 519.0 | 411.6 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -8.46 | 265.92 | -39.24 | 111.02 | 0.6726 | 355.0 | 340.3 | |
| 0.00 | 3.01 | 0.00 | 2.02 | -8.77 | 265.56 | -39.59 | 111.27 | 0.6782 | 495.0 | 395.3 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -8.21 | 265.63 | -39.52 | 110.52 | 0.6748 | 499.0 | 370.2 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -15.38 | 264.22 | -40.93 | 119.20 | 0.7260 | 503.0 | 442.6 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -8.25 | 265.11 | -40.04 | 110.32 | 0.6813 | 316.0 | 317.5 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -8.49 | 264.80 | -40.35 | 110.50 | 0.6860 | 547.0 | 391.9 | |
| 0.89 | 2.66 | 0.60 | 1.81 | -8.67 | 264.50 | -40.66 | 110.59 | 0.6904 | 605.4 | 407.0 | |
| 0.89 | 2.66 | 0.61 | 1.83 | -8.51 | 263.87 | -41.28 | 110.07 | 0.6970 | -850.5 | -614.0 | |
| 0.53 | 1.24 | 0.38 | 0.88 | -10.32 | 262.40 | -42.75 | 111.77 | 0.7215 | -659.5 | -731.1 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -9.19 | 262.04 | -43.11 | 110.13 | 0.7209 | -779.0 | -671.2 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -10.31 | 261.73 | -43.43 | 111.45 | 0.7289 | -744.0 | -678.2 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -10.76 | 261.65 | -43.51 | 111.99 | 0.7317 | -632.0 | -644.0 | |
| 2.92 | 5.84 | 2.10 | 4.20 | -10.00 | 261.74 | -43.41 | 111.05 | 0.7275 | -854.1 | -668.2 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -9.51 | 261.66 | -43.50 | 110.36 | 0.7265 | -666.0 | -570.6 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -10.76 | 260.97 | -44.19 | 111.66 | 0.7391 | -590.0 | -452.4 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -11.05 | 260.83 | -44.33 | 111.97 | 0.7419 | -585.0 | -396.7 | |
| 0.00 | 1.50 | 0.00 | 1.11 | -10.78 | 260.71 | -44.45 | 111.57 | 0.7421 | -196.0 | -147.5 | |
| 1.42 | 2.57 | 1.04 | 1.89 | -10.63 | 260.65 | -44.51 | 111.35 | 0.7421 | 227.4 | 189.7 | |
| 0.97 | 4.43 | 0.73 | 3.30 | -11.21 | 260.10 | -45.05 | 111.84 | 0.7503 | -821.1 | -608.3 | |
| 0.00 | 1.86 | 0.00 | 1.39 | -10.83 | 259.78 | -45.37 | 111.22 | 0.7522 | 445.0 | 374.0 | |
| 0.00 | 1.24 | 0.00 | 0.94 | -11.86 | 259.53 | -45.63 | 112.40 | 0.7590 | -732.0 | -569.1 | |
| 3.81 | 152.17 | 2.91 | 117.53 | -12.34 | 259.15 | -46.00 | 112.82 | 0.7647 | -1038.6 | -250.2 | |
| 21.33 | -41.00 | 16.45 | -41.00 | -12.86 | 258.99 | -46.17 | 113.38 | 0.7685 | -1025.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -12.27 | 257.54 | -47.61 | 112.03 | 0.7808 | -632.0 | -486.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
