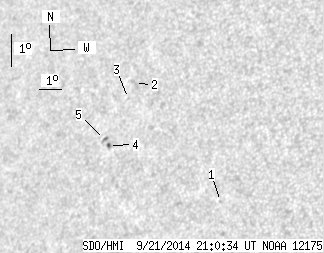

SDO HMI 2014-09-21 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.80 | 10.28 | 0.58 | 7.42 | 16.59 | 258.32 | -46.84 | 73.84 | 0.7300 | 214.1 | 239.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.59 | 14.44 | 262.97 | -42.19 | 76.26 | 0.6718 | -681.0 | -585.9 | |
| 0.00 | 4.69 | 0.00 | 3.40 | 17.68 | 258.26 | -46.90 | 72.37 | 0.7323 | 86.0 | 145.2 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 17.20 | 258.14 | -47.02 | 73.03 | 0.7330 | 414.0 | 362.0 | |
| 0.80 | 1.77 | 0.58 | 1.29 | 15.71 | 257.68 | -47.47 | 75.12 | 0.7364 | 717.9 | 595.4 | |
| 0.00 | 2.66 | 0.00 | 1.95 | 15.87 | 257.45 | -47.71 | 74.92 | 0.7392 | 745.0 | 513.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
