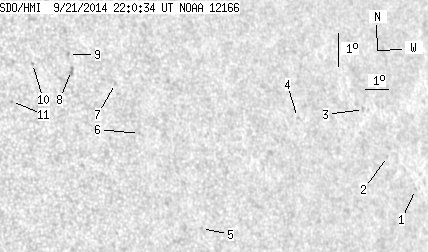

SDO HMI 2014-09-21 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.26 | 0.00 | 9.75 | 14.46 | 348.06 | 43.45 | 284.00 | 0.6853 | 228.1 | 177.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 1.00 | 11.30 | 357.15 | 52.55 | 278.84 | 0.7901 | -433.0 | -424.1 | |
| 0.00 | 0.97 | 0.00 | 0.77 | 12.42 | 356.05 | 51.45 | 280.27 | 0.7784 | -485.0 | -409.9 | |
| 0.00 | 1.59 | 0.00 | 1.23 | 13.93 | 355.31 | 50.70 | 282.25 | 0.7709 | -582.0 | -446.8 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 13.97 | 352.17 | 47.57 | 282.51 | 0.7360 | -542.0 | -481.3 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 11.01 | 347.29 | 42.69 | 278.59 | 0.6754 | 550.0 | 446.4 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 14.06 | 345.34 | 40.73 | 283.38 | 0.6529 | 679.0 | 513.3 | |
| 0.00 | 1.33 | 0.00 | 0.86 | 15.64 | 344.71 | 40.11 | 285.91 | 0.6474 | 645.0 | 543.0 | |
| 0.00 | 3.36 | 0.00 | 2.13 | 16.17 | 343.05 | 38.45 | 287.10 | 0.6271 | 737.0 | 624.2 | |
| 0.00 | 1.33 | 0.00 | 0.84 | 16.66 | 343.05 | 38.44 | 287.87 | 0.6281 | 677.0 | 529.5 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 16.49 | 341.58 | 36.97 | 288.00 | 0.6086 | 590.0 | 454.2 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 15.40 | 340.53 | 35.92 | 286.49 | 0.5921 | 673.0 | 600.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
