SDO HMI 2014-09-21 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.75 | 0.00 | 6.88 | 9.82 | 326.70 | 22.10 | 281.83 | 0.3822 | 593.0 | 467.1 | |
|
previous
or next observation for the same group /

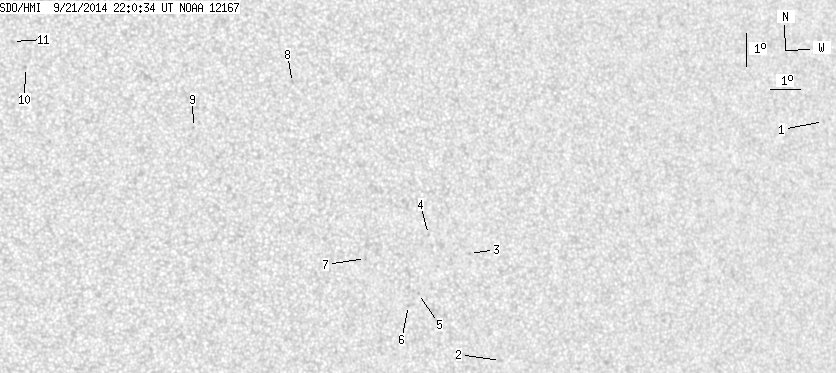

back to the solar disc SDO HMI 2014-09-21 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.56 | 11.09 | 343.61 | 39.00 | 278.92 | 0.6274 | -604.0 | -509.5 | |
| 0.00 | 2.04 | 0.00 | 1.13 | 4.70 | 331.28 | 26.68 | 266.37 | 0.4502 | 657.0 | 499.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 7.97 | 330.42 | 25.81 | 273.69 | 0.4340 | 666.0 | 506.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 8.62 | 329.09 | 24.48 | 275.27 | 0.4132 | 667.0 | 576.9 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 6.86 | 328.64 | 24.04 | 270.97 | 0.4062 | 721.0 | 582.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 6.52 | 328.29 | 23.69 | 270.08 | 0.4009 | 756.0 | 602.1 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 8.00 | 326.96 | 22.35 | 273.83 | 0.3791 | 635.0 | 519.9 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 13.41 | 324.96 | 20.35 | 289.18 | 0.3598 | 713.0 | 534.3 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 12.17 | 321.64 | 17.03 | 288.20 | 0.3027 | 759.0 | 657.9 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 14.15 | 316.39 | 11.79 | 302.40 | 0.2357 | 767.0 | 511.6 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 14.95 | 316.03 | 11.42 | 306.07 | 0.2378 | 786.0 | 632.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
