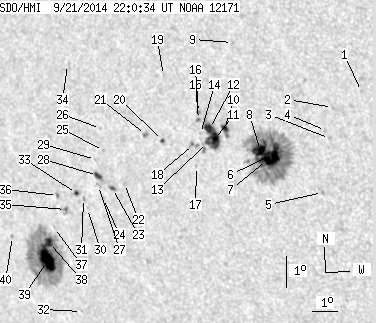

SDO HMI 2014-09-21 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.24 | 441.59 | 69.72 | 305.74 | -10.43 | 263.97 | -40.63 | 113.03 | 0.6953 | 186.4 | 56.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.54 | -6.57 | 272.27 | -32.34 | 112.20 | 0.5761 | 693.0 | 580.4 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -7.13 | 271.17 | -33.43 | 112.40 | 0.5935 | 666.0 | 539.1 | |
| 0.00 | 1.50 | 0.00 | 0.93 | -8.11 | 270.98 | -33.63 | 113.78 | 0.6014 | 811.0 | 674.8 | |
| 0.00 | 1.50 | 0.00 | 0.93 | -7.87 | 270.85 | -33.75 | 113.33 | 0.6016 | 522.0 | 522.2 | |
| 0.00 | 1.77 | 0.00 | 1.11 | -9.83 | 270.53 | -34.07 | 116.06 | 0.6167 | 710.0 | 545.5 | |
| 14.70 | 186.89 | 9.36 | 119.45 | -8.73 | 268.87 | -35.73 | 113.37 | 0.6311 | 1189.0 | 387.7 | |
| 12.13 | -6.00 | 7.77 | -6.00 | -8.97 | 268.54 | -36.06 | 113.53 | 0.6364 | 935.8 | 999999 | |
| 14.16 | -6.00 | 9.08 | -6.00 | -8.67 | 268.35 | -36.25 | 112.98 | 0.6373 | 946.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -5.39 | 267.60 | -37.00 | 107.69 | 0.6312 | 683.0 | 582.2 | |
| 3.54 | 7.61 | 2.30 | 4.95 | -8.09 | 267.04 | -37.56 | 111.38 | 0.6504 | 892.2 | 680.8 | |
| 13.99 | 34.35 | 9.17 | 22.55 | -8.46 | 266.62 | -37.99 | 111.68 | 0.6575 | 884.0 | 433.6 | |
| 6.46 | -11.00 | 4.24 | -11.00 | -8.13 | 266.46 | -38.14 | 111.13 | 0.6578 | 815.1 | 999999 | |
| 1.68 | -11.00 | 1.11 | -11.00 | -8.58 | 266.33 | -38.27 | 111.69 | 0.6615 | 562.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -8.32 | 266.09 | -38.52 | 111.19 | 0.6632 | 387.0 | 309.9 | |
| 0.44 | 1.95 | 0.29 | 1.28 | -7.88 | 266.06 | -38.54 | 110.56 | 0.6615 | 546.0 | 431.2 | |
| 0.00 | 1.77 | 0.00 | 1.16 | -7.66 | 266.09 | -38.52 | 110.26 | 0.6602 | 685.0 | 559.3 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -9.37 | 265.80 | -38.81 | 112.51 | 0.6716 | 274.0 | 252.7 | |
| 0.00 | 4.34 | 0.00 | 2.88 | -8.68 | 265.77 | -38.83 | 111.54 | 0.6687 | 304.0 | 420.4 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -6.62 | 264.82 | -39.78 | 108.16 | 0.6712 | 504.0 | 491.0 | |
| 0.97 | 2.04 | 0.66 | 1.38 | -8.66 | 264.55 | -40.06 | 110.87 | 0.6832 | 602.4 | 472.3 | |
| 0.00 | 2.48 | 0.00 | 1.69 | -8.52 | 263.88 | -40.72 | 110.36 | 0.6905 | -863.0 | -668.8 | |
| 0.00 | 1.86 | 0.00 | 1.30 | -10.15 | 262.79 | -41.81 | 112.00 | 0.7102 | -743.0 | -626.5 | |
| 1.50 | 2.92 | 1.07 | 2.07 | -10.35 | 262.26 | -42.34 | 112.01 | 0.7170 | -724.9 | -599.6 | |
| 0.00 | 1.59 | 0.00 | 1.14 | -10.70 | 261.82 | -42.78 | 112.25 | 0.7234 | -719.0 | -573.4 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -9.17 | 262.08 | -42.53 | 110.38 | 0.7142 | -638.0 | -573.9 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -8.49 | 262.05 | -42.55 | 109.46 | 0.7117 | -317.0 | -330.8 | |
| 0.00 | 2.21 | 0.00 | 1.58 | -10.30 | 261.68 | -42.92 | 111.67 | 0.7233 | -708.0 | -643.7 | |
| 3.19 | 5.31 | 2.27 | 3.79 | -9.99 | 261.70 | -42.91 | 111.27 | 0.7218 | -804.4 | -640.8 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -9.49 | 261.69 | -42.91 | 110.61 | 0.7198 | -649.0 | -581.5 | |
| 0.00 | 0.80 | 0.00 | 0.58 | -11.08 | 261.08 | -43.52 | 112.39 | 0.7332 | -423.0 | -354.4 | |
| 0.00 | 1.68 | 0.00 | 1.22 | -10.77 | 260.97 | -43.64 | 111.94 | 0.7332 | -496.0 | -436.7 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -14.44 | 260.07 | -44.53 | 116.09 | 0.7585 | -656.0 | -525.0 | |
| 1.50 | 3.01 | 1.10 | 2.19 | -10.64 | 260.69 | -43.91 | 111.64 | 0.7356 | 234.3 | 160.7 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -6.60 | 260.91 | -43.69 | 106.45 | 0.7178 | 189.0 | 180.6 | |
| 0.71 | 4.07 | 0.52 | 3.01 | -11.19 | 260.12 | -44.49 | 112.08 | 0.7442 | -801.2 | -658.3 | |
| 0.53 | 1.77 | 0.39 | 1.31 | -10.78 | 259.85 | -44.75 | 111.43 | 0.7453 | 404.8 | 326.1 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -11.82 | 259.51 | -45.09 | 112.58 | 0.7531 | -607.0 | -569.2 | |
| 4.96 | 158.82 | 3.76 | 121.43 | -12.32 | 259.18 | -45.42 | 113.06 | 0.7586 | -1038.9 | -246.8 | |
| 21.78 | -38.00 | 16.63 | -38.00 | -12.91 | 258.95 | -45.65 | 113.68 | 0.7634 | -1047.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.97 | -12.28 | 257.53 | -47.07 | 112.28 | 0.7754 | -588.0 | -500.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
