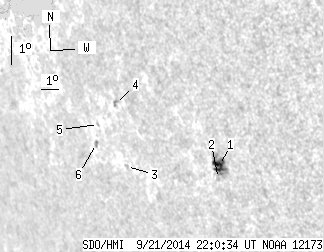

SDO HMI 2014-09-21 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.03 | 33.73 | 8.14 | 31.63 | -15.11 | 250.44 | -54.17 | 112.80 | 0.8502 | 300.8 | 87.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.03 | 23.55 | 8.14 | 21.22 | -15.21 | 252.04 | -52.57 | 113.46 | 0.8375 | 746.5 | 446.4 | |
| 0.00 | 2.21 | 0.00 | 2.01 | -15.65 | 251.82 | -52.78 | 113.88 | 0.8407 | -91.0 | -74.7 | |
| 0.00 | 1.42 | 0.00 | 1.48 | -15.80 | 246.66 | -57.94 | 112.22 | 0.8828 | -465.0 | -360.4 | |
| 0.00 | 2.92 | 0.00 | 2.98 | -13.76 | 246.88 | -57.72 | 110.07 | 0.8762 | -620.0 | -553.8 | |
| 0.00 | 1.15 | 0.00 | 1.23 | -14.58 | 245.53 | -59.08 | 110.54 | 0.8885 | -320.0 | -335.1 | |
| 0.00 | 2.48 | 0.00 | 2.71 | -15.23 | 245.11 | -59.50 | 111.12 | 0.8930 | -628.0 | -385.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
