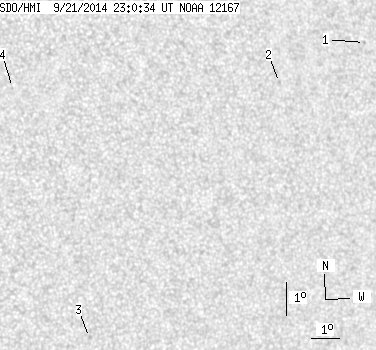

SDO HMI 2014-09-21 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.25 | 0.00 | 2.49 | 5.96 | 335.80 | 31.75 | 269.26 | 0.5268 | -168.5 | -153.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-21 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.72 | 9.35 | 342.17 | 38.12 | 276.14 | 0.6149 | -587.0 | -526.8 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 8.38 | 338.83 | 34.78 | 274.51 | 0.5682 | -696.0 | -597.0 | |
| 0.00 | 1.68 | 0.00 | 0.95 | 1.14 | 331.72 | 27.66 | 259.11 | 0.4747 | 56.0 | 128.6 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 8.81 | 329.45 | 25.40 | 275.67 | 0.4277 | 553.0 | 482.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
