SDO HMI 2014-09-22 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.91 | 28.69 | 6.07 | 26.31 | -15.00 | 250.24 | -53.27 | 113.01 | 0.8422 | 109.2 | 94.0 | |
|
previous
or next observation for the same group /

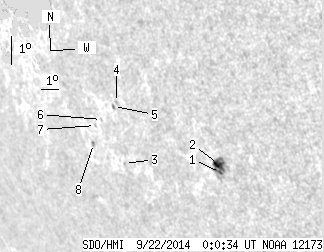

back to the solar disc SDO HMI 2014-09-22 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.80 | 21.07 | 0.70 | 18.54 | -15.43 | 251.97 | -51.54 | 114.11 | 0.8291 | 624.9 | 442.3 | |
| 6.11 | -1.00 | 5.37 | -1.00 | -15.17 | 251.95 | -51.55 | 113.82 | 0.8283 | 767.4 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.81 | -15.68 | 246.71 | -56.79 | 112.47 | 0.8737 | -556.0 | -484.7 | |
| 0.00 | 1.33 | 0.00 | 1.31 | -13.69 | 247.06 | -56.44 | 110.40 | 0.8658 | -577.0 | -450.2 | |
| 0.00 | 1.77 | 0.00 | 1.76 | -13.84 | 246.83 | -56.67 | 110.49 | 0.8681 | -612.0 | -533.7 | |
| 0.00 | 0.97 | 0.00 | 1.00 | -14.35 | 245.94 | -57.56 | 110.76 | 0.8764 | -462.0 | -435.1 | |
| 0.00 | 0.80 | 0.00 | 0.83 | -14.59 | 245.49 | -58.02 | 110.88 | 0.8805 | -432.0 | -378.2 | |
| 0.00 | 1.95 | 0.00 | 2.06 | -15.21 | 245.10 | -58.40 | 111.43 | 0.8849 | -601.0 | -461.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
