SDO HMI 2014-09-22 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.86 | 752.69 | 151.55 | 941.76 | -11.15 | 238.72 | -64.23 | 105.50 | 0.9167 | 13.2 | -131.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

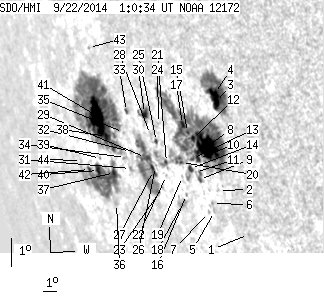

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 1.10 | -13.51 | 244.60 | -58.35 | 109.60 | 0.8806 | -130.0 | -99.2 | |
| 0.00 | 1.33 | 0.00 | 1.42 | -12.26 | 243.27 | -59.68 | 107.85 | 0.8881 | 399.0 | 337.1 | |
| 7.00 | 64.83 | 7.14 | 65.88 | -9.43 | 244.02 | -58.93 | 104.93 | 0.8764 | 678.0 | 454.8 | |
| 6.82 | -3.00 | 6.96 | -3.00 | -9.14 | 244.04 | -58.91 | 104.62 | 0.8757 | 836.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.87 | -12.99 | 242.74 | -60.21 | 108.48 | 0.8935 | 469.0 | 441.0 | |
| 0.00 | 0.80 | 0.00 | 0.87 | -12.74 | 242.71 | -60.24 | 108.20 | 0.8932 | 597.0 | 497.3 | |
| 0.00 | 1.15 | 0.00 | 1.28 | -13.06 | 242.33 | -60.62 | 108.45 | 0.8967 | 375.0 | 320.4 | |
| 37.46 | 255.85 | 39.94 | 279.65 | -10.91 | 243.02 | -59.93 | 106.29 | 0.8873 | 772.4 | 67.6 | |
| 1.24 | 4.69 | 1.37 | 5.17 | -12.04 | 242.17 | -60.78 | 107.30 | 0.8959 | 492.6 | 461.9 | |
| 2.66 | -8.00 | 2.91 | -8.00 | -11.36 | 242.36 | -60.59 | 106.61 | 0.8931 | 367.6 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -11.84 | 241.99 | -60.96 | 107.03 | 0.8968 | 330.0 | 336.0 | |
| 1.59 | -8.00 | 1.74 | -8.00 | -10.75 | 242.20 | -60.75 | 105.90 | 0.8932 | 337.6 | 999999 | |
| 1.59 | -8.00 | 1.76 | -8.00 | -11.40 | 241.96 | -60.99 | 106.55 | 0.8961 | 212.7 | 999999 | |
| 2.21 | 8.24 | 2.48 | 9.28 | -11.74 | 241.71 | -61.24 | 106.85 | 0.8987 | 342.3 | 214.2 | |
| 0.97 | -8.00 | 1.07 | -8.00 | -10.59 | 241.94 | -61.02 | 105.66 | 0.8949 | 191.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.33 | -12.63 | 241.08 | -61.87 | 107.64 | 0.9048 | 462.0 | 388.2 | |
| 2.92 | -8.00 | 3.23 | -8.00 | -10.37 | 241.69 | -61.26 | 105.35 | 0.8963 | 214.5 | 999999 | |
| 0.00 | 6.55 | 0.00 | 7.69 | -12.96 | 240.67 | -62.28 | 107.89 | 0.9082 | 89.0 | 78.4 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -12.07 | 241.06 | -61.89 | 107.03 | 0.9040 | 170.0 | 181.0 | |
| 0.89 | -8.00 | 1.01 | -8.00 | -11.61 | 241.17 | -61.78 | 106.57 | 0.9023 | 329.9 | 999999 | |
| 1.15 | -8.00 | 1.36 | -8.00 | -11.73 | 240.12 | -62.83 | 106.43 | 0.9099 | 213.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -12.16 | 239.94 | -63.01 | 106.84 | 0.9119 | 379.0 | 392.7 | |
| 0.00 | 0.71 | 0.00 | 0.86 | -12.59 | 239.47 | -63.48 | 107.18 | 0.9157 | 233.0 | 226.6 | |
| 0.00 | 0.62 | 0.00 | 0.73 | -10.52 | 240.05 | -62.90 | 105.11 | 0.9083 | -335.0 | -310.1 | |
| 1.06 | 1.95 | 1.27 | 2.33 | -11.12 | 239.69 | -63.27 | 105.67 | 0.9119 | -35.6 | -123.3 | |
| 0.00 | 0.53 | 0.00 | 0.65 | -11.95 | 239.27 | -63.68 | 106.45 | 0.9161 | 312.0 | 203.3 | |
| 3.90 | 65.27 | 4.81 | 81.90 | -12.10 | 239.06 | -63.89 | 106.56 | 0.9177 | 260.3 | -309.4 | |
| 0.00 | 2.21 | 0.00 | 2.68 | -10.94 | 239.34 | -63.61 | 105.39 | 0.9139 | -337.0 | -315.6 | |
| 5.22 | -27.00 | 6.53 | -27.00 | -11.74 | 238.65 | -64.30 | 106.08 | 0.9198 | -439.4 | 999999 | |
| 4.52 | 12.84 | 5.46 | 15.57 | -10.30 | 239.17 | -63.78 | 104.67 | 0.9141 | -765.6 | -545.6 | |
| 0.00 | 1.59 | 0.00 | 2.11 | -12.24 | 237.32 | -65.63 | 106.28 | 0.9290 | -470.0 | -464.7 | |
| 0.00 | 1.51 | 0.00 | 1.96 | -11.67 | 237.59 | -65.36 | 105.75 | 0.9265 | -654.0 | -588.8 | |
| 0.89 | 2.21 | 1.13 | 2.82 | -10.39 | 237.85 | -65.11 | 104.46 | 0.9230 | -494.3 | -471.6 | |
| 0.00 | 2.13 | 0.00 | 2.84 | -11.92 | 237.10 | -65.85 | 105.90 | 0.9299 | -435.0 | -447.7 | |
| 0.00 | 0.89 | 0.00 | 1.16 | -11.11 | 237.32 | -65.63 | 105.09 | 0.9274 | -495.0 | -478.9 | |
| 0.00 | 2.04 | 0.00 | 2.96 | -13.55 | 235.52 | -67.43 | 107.24 | 0.9414 | -296.0 | -292.9 | |
| 2.57 | 80.94 | 3.62 | 121.08 | -12.53 | 235.93 | -67.02 | 106.26 | 0.9377 | -618.2 | -408.3 | |
| 1.68 | 227.51 | 2.36 | 322.87 | -11.40 | 235.87 | -67.08 | 105.08 | 0.9366 | -766.6 | -258.5 | |
| 0.00 | 0.53 | 0.00 | 0.78 | -12.20 | 234.97 | -67.98 | 105.71 | 0.9428 | -401.0 | -380.3 | |
| 4.69 | -37.00 | 7.06 | -37.00 | -12.62 | 234.56 | -68.39 | 106.06 | 0.9455 | -650.3 | 999999 | |
| 31.97 | -38.00 | 45.43 | -38.00 | -10.83 | 235.42 | -67.53 | 104.38 | 0.9385 | -639.2 | 999999 | |
| 1.86 | -37.00 | 2.91 | -37.00 | -12.69 | 233.75 | -69.20 | 105.95 | 0.9499 | -112.1 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.86 | -8.66 | 235.61 | -67.34 | 102.14 | 0.9347 | -450.0 | -440.1 | |
| 0.00 | 1.33 | 0.00 | 2.14 | -12.47 | 233.16 | -69.79 | 105.60 | 0.9527 | 290.0 | 313.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
