SDO HMI 2014-09-22 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.75 | 283.06 | 30.80 | 144.15 | 9.05 | 289.73 | -12.67 | 80.38 | 0.2262 | -574.3 | -352.3 | |
|
previous
or next observation for the same group /

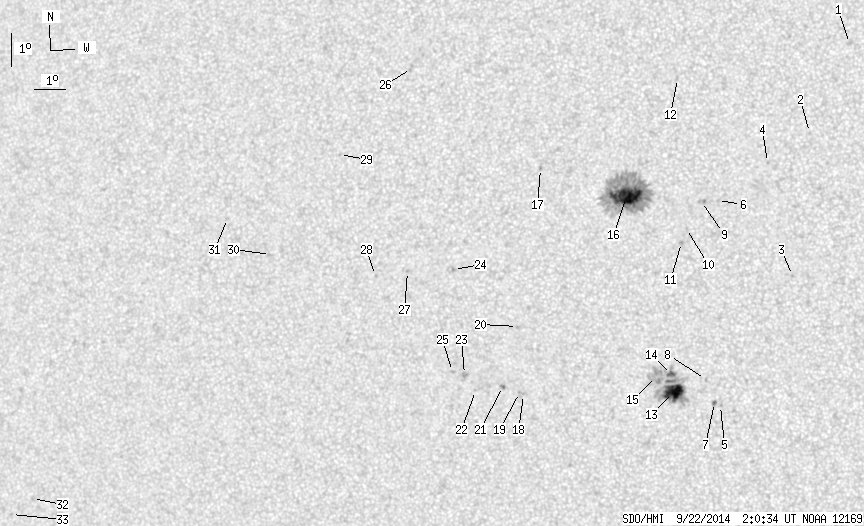

back to the solar disc SDO HMI 2014-09-22 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.57 | 0.00 | 1.29 | 15.72 | 296.68 | -5.72 | 32.45 | 0.1796 | -777.0 | -556.1 | |
| 0.00 | 0.44 | 0.00 | 0.22 | 13.00 | 295.51 | -6.90 | 48.32 | 0.1573 | -630.0 | -459.2 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 8.68 | 295.08 | -7.32 | 77.00 | 0.1299 | -773.0 | -637.5 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 12.08 | 294.23 | -8.17 | 57.54 | 0.1655 | -854.0 | -742.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 4.73 | 292.94 | -9.46 | 103.43 | 0.1693 | 882.0 | 719.9 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 10.90 | 292.71 | -9.69 | 67.49 | 0.1798 | -862.0 | -567.8 | |
| 0.53 | 2.21 | 0.27 | 1.11 | 4.82 | 292.75 | -9.65 | 102.67 | 0.1720 | 1069.8 | 871.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 5.51 | 292.47 | -9.94 | 98.44 | 0.1744 | -868.0 | -659.2 | |
| 0.00 | 2.83 | 0.00 | 1.43 | 10.86 | 292.21 | -10.19 | 68.62 | 0.1874 | -692.0 | -763.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 10.04 | 291.77 | -10.63 | 73.49 | 0.1903 | -755.0 | -513.4 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 9.61 | 291.63 | -10.77 | 75.84 | 0.1909 | -909.0 | -701.9 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 14.56 | 291.31 | -11.10 | 54.55 | 0.2297 | -772.0 | -580.6 | |
| 20.99 | 63.24 | 10.59 | 31.92 | 5.10 | 291.49 | -10.91 | 99.71 | 0.1922 | -1208.2 | -557.9 | |
| 2.30 | -13.00 | 1.16 | -13.00 | 5.64 | 291.42 | -10.98 | 96.86 | 0.1918 | -1062.5 | 999999 | |
| 0.00 | 13.91 | 0.00 | 7.03 | 5.57 | 290.96 | -11.44 | 96.89 | 0.1998 | -524.0 | -452.2 | |
| 36.93 | 163.41 | 18.78 | 83.09 | 10.96 | 289.86 | -12.54 | 71.65 | 0.2255 | -1218.7 | -412.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 11.73 | 287.11 | -15.29 | 71.70 | 0.2733 | -810.0 | -670.5 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 4.91 | 286.84 | -15.56 | 97.09 | 0.2706 | 737.0 | 640.0 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 4.97 | 286.71 | -15.69 | 96.81 | 0.2726 | 890.0 | 736.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 6.95 | 286.59 | -15.81 | 89.47 | 0.2717 | 788.0 | 719.2 | |
| 0.00 | 2.13 | 0.00 | 1.10 | 5.13 | 286.17 | -16.23 | 95.95 | 0.2811 | 1063.0 | 909.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 4.98 | 285.32 | -17.08 | 96.07 | 0.2955 | 791.0 | 579.1 | |
| 0.00 | 3.10 | 0.00 | 1.61 | 5.45 | 284.96 | -17.44 | 94.35 | 0.3005 | 937.0 | 819.4 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 8.60 | 284.49 | -17.91 | 83.91 | 0.3071 | 959.0 | 777.3 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 5.53 | 284.58 | -17.82 | 93.96 | 0.3067 | 850.0 | 696.9 | |
| 0.00 | 3.54 | 0.00 | 1.88 | 14.61 | 282.71 | -19.69 | 67.05 | 0.3556 | -464.0 | -526.4 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 8.48 | 283.02 | -19.38 | 84.53 | 0.3312 | 873.0 | 701.7 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 8.32 | 281.99 | -20.41 | 85.14 | 0.3478 | 740.0 | 608.8 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 11.91 | 280.57 | -21.83 | 75.67 | 0.3772 | -659.0 | -499.0 | |
| 0.00 | 1.68 | 0.00 | 0.91 | 8.79 | 278.51 | -23.89 | 84.23 | 0.4040 | 713.0 | 565.9 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 9.81 | 276.99 | -25.41 | 82.00 | 0.4287 | 666.0 | 524.3 | |
| 0.00 | 2.30 | 0.00 | 1.35 | 0.99 | 270.69 | -31.71 | 99.46 | 0.5349 | -517.0 | -322.6 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 0.46 | 269.95 | -32.45 | 100.14 | 0.5472 | 617.0 | 491.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
