SDO HMI 2014-09-22 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.09 | 467.02 | 75.11 | 312.60 | -10.42 | 264.07 | -38.33 | 114.28 | 0.6686 | 260.9 | 37.5 | |
|
previous
or next observation for the same group /

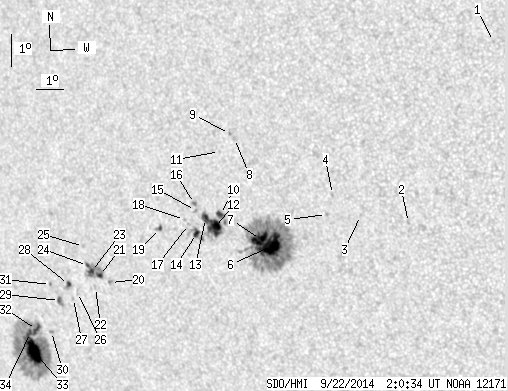

back to the solar disc SDO HMI 2014-09-22 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.49 | -2.07 | 276.99 | -25.41 | 108.93 | 0.4552 | 743.0 | 604.9 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -7.82 | 273.84 | -28.57 | 117.07 | 0.5341 | 663.0 | 548.9 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -7.70 | 272.17 | -30.23 | 115.54 | 0.5551 | 818.0 | 627.4 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -7.11 | 271.23 | -31.18 | 113.88 | 0.5639 | 460.0 | 449.1 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -7.75 | 270.96 | -31.44 | 114.71 | 0.5711 | 659.0 | 504.4 | |
| 33.92 | 196.36 | 21.06 | 121.95 | -8.89 | 268.83 | -33.57 | 114.99 | 0.6050 | 1096.2 | 368.6 | |
| 15.06 | -6.00 | 9.38 | -6.00 | -8.69 | 268.48 | -33.92 | 114.47 | 0.6083 | 933.1 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.37 | -5.61 | 267.80 | -34.61 | 109.30 | 0.6011 | 628.0 | 490.8 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -5.47 | 267.62 | -34.78 | 108.98 | 0.6027 | 701.0 | 620.6 | |
| 3.10 | 38.00 | 1.96 | 24.13 | -8.02 | 267.07 | -35.33 | 112.56 | 0.6224 | 914.3 | 486.4 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -6.05 | 267.21 | -35.19 | 109.66 | 0.6108 | 475.0 | 333.9 | |
| 15.68 | -10.00 | 9.95 | -10.00 | -8.44 | 266.80 | -35.60 | 113.02 | 0.6279 | 885.0 | 999999 | |
| 4.78 | -10.00 | 3.04 | -10.00 | -8.18 | 266.49 | -35.91 | 112.46 | 0.6305 | 764.4 | 999999 | |
| 2.75 | 10.27 | 1.76 | 6.60 | -8.68 | 266.10 | -36.31 | 112.95 | 0.6379 | 638.1 | 402.3 | |
| 0.00 | 1.77 | 0.00 | 1.13 | -7.96 | 266.14 | -36.26 | 111.92 | 0.6338 | 719.0 | 504.0 | |
| 0.53 | 1.77 | 0.34 | 1.13 | -7.74 | 266.12 | -36.28 | 111.59 | 0.6329 | 599.5 | 515.4 | |
| 0.00 | 1.15 | 0.00 | 0.74 | -8.42 | 265.82 | -36.58 | 112.41 | 0.6400 | 431.0 | 362.8 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -8.27 | 265.69 | -36.72 | 112.12 | 0.6409 | 492.0 | 374.7 | |
| 1.33 | 3.72 | 0.87 | 2.43 | -8.63 | 264.73 | -37.68 | 112.09 | 0.6544 | 598.7 | 360.6 | |
| 0.00 | 1.95 | 0.00 | 1.33 | -10.49 | 262.50 | -39.90 | 113.45 | 0.6898 | -903.0 | -782.0 | |
| 2.48 | 20.81 | 1.70 | 14.30 | -10.31 | 262.09 | -40.31 | 112.98 | 0.6937 | -981.9 | -708.0 | |
| 0.00 | 1.77 | 0.00 | 1.22 | -10.70 | 261.87 | -40.53 | 113.39 | 0.6981 | -549.0 | -483.5 | |
| 2.30 | -21.00 | 1.59 | -21.00 | -10.21 | 261.79 | -40.62 | 112.69 | 0.6967 | -920.7 | 999999 | |
| 0.89 | -21.00 | 0.61 | -21.00 | -10.03 | 261.65 | -40.75 | 112.38 | 0.6975 | -775.7 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.85 | -9.44 | 261.58 | -40.82 | 111.55 | 0.6957 | -609.0 | -494.4 | |
| 0.00 | 2.13 | 0.00 | 1.49 | -10.92 | 261.10 | -41.30 | 113.28 | 0.7079 | -510.0 | -473.0 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -11.13 | 260.90 | -41.50 | 113.45 | 0.7111 | -273.0 | -284.8 | |
| 1.77 | 4.87 | 1.24 | 3.42 | -10.70 | 260.77 | -41.63 | 112.82 | 0.7106 | 258.3 | -39.3 | |
| 1.59 | 4.96 | 1.13 | 3.52 | -11.24 | 260.30 | -42.10 | 113.29 | 0.7183 | -755.8 | -639.7 | |
| 0.00 | 1.77 | 0.00 | 1.28 | -12.27 | 259.77 | -42.63 | 114.34 | 0.7287 | -702.0 | -647.1 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -10.76 | 260.01 | -42.39 | 112.52 | 0.7193 | 489.0 | 411.5 | |
| 4.52 | 162.08 | 3.29 | 119.40 | -12.26 | 259.13 | -43.27 | 114.01 | 0.7355 | -948.4 | -242.5 | |
| 23.12 | -32.00 | 17.00 | -32.00 | -12.98 | 258.89 | -43.51 | 114.79 | 0.7413 | -1050.6 | 999999 | |
| 0.27 | -32.00 | 0.19 | -32.00 | -12.38 | 258.85 | -43.55 | 114.02 | 0.7390 | -846.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
