SDO HMI 2014-09-22 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.47 | 0.00 | 6.73 | 14.52 | 347.51 | 45.66 | 283.78 | 0.7116 | 206.9 | 180.9 | |
|
previous
or next observation for the same group /

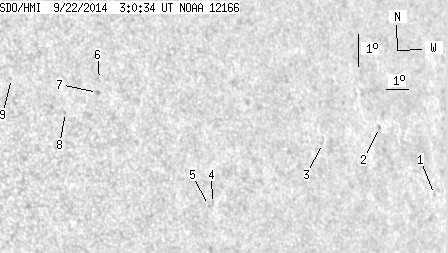

back to the solar disc SDO HMI 2014-09-22 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.61 | 11.66 | 357.58 | 55.73 | 279.31 | 0.8223 | -306.0 | -287.8 | |
| 0.00 | 1.24 | 0.00 | 1.02 | 13.93 | 355.36 | 53.51 | 282.14 | 0.8004 | -507.0 | -443.5 | |
| 0.00 | 0.97 | 0.00 | 0.75 | 13.73 | 352.41 | 50.55 | 282.00 | 0.7692 | -574.0 | -467.2 | |
| 0.00 | 1.06 | 0.00 | 0.74 | 12.38 | 346.97 | 45.12 | 280.48 | 0.7061 | 490.0 | 446.2 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 12.34 | 346.78 | 44.93 | 280.42 | 0.7038 | 345.0 | 429.2 | |
| 0.00 | 1.33 | 0.00 | 0.88 | 16.50 | 343.14 | 41.28 | 286.98 | 0.6638 | 524.0 | 486.1 | |
| 0.00 | 1.68 | 0.00 | 1.11 | 16.12 | 342.95 | 41.10 | 286.44 | 0.6608 | 739.0 | 656.3 | |
| 0.00 | 1.33 | 0.00 | 0.86 | 15.61 | 341.51 | 39.66 | 285.97 | 0.6416 | 571.0 | 410.8 | |
| 0.00 | 0.62 | 0.00 | 0.39 | 16.80 | 339.61 | 37.76 | 288.29 | 0.6197 | 580.0 | 518.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
