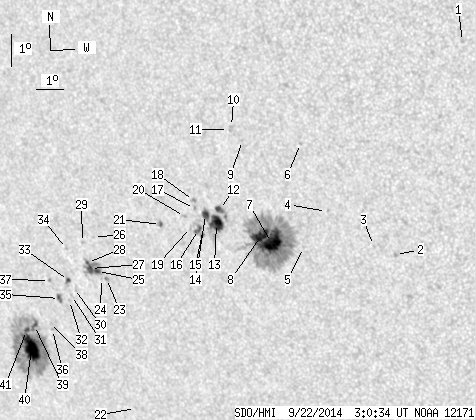

SDO HMI 2014-09-22 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.14 | 488.31 | 74.31 | 322.94 | -10.34 | 264.31 | -37.54 | 114.64 | 0.6589 | 193.6 | 69.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.49 | -2.26 | 275.90 | -25.95 | 108.90 | 0.4641 | 682.0 | 507.4 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -8.98 | 273.26 | -28.60 | 118.96 | 0.5424 | 804.0 | 692.4 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -8.74 | 272.51 | -29.34 | 117.94 | 0.5504 | 586.0 | 506.5 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -7.78 | 270.94 | -30.91 | 115.15 | 0.5645 | 509.0 | 533.2 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -8.96 | 270.01 | -31.84 | 116.33 | 0.5837 | 125.0 | 96.0 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -5.73 | 270.17 | -31.69 | 111.25 | 0.5629 | 686.0 | 499.5 | |
| 30.47 | 215.87 | 18.78 | 133.18 | -8.89 | 268.86 | -32.99 | 115.38 | 0.5977 | 1132.7 | 360.4 | |
| 15.68 | -7.00 | 9.70 | -7.00 | -8.72 | 268.47 | -33.38 | 114.88 | 0.6016 | 914.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -5.78 | 268.07 | -33.78 | 110.03 | 0.5910 | 601.0 | 477.4 | |
| 0.00 | 1.42 | 0.00 | 0.87 | -5.37 | 267.70 | -34.15 | 109.17 | 0.5940 | 696.0 | 589.6 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -5.47 | 267.58 | -34.27 | 109.26 | 0.5960 | 516.0 | 543.5 | |
| 3.28 | 9.12 | 2.06 | 5.72 | -7.98 | 267.04 | -34.81 | 112.82 | 0.6156 | 884.8 | 712.8 | |
| 14.08 | 34.72 | 8.87 | 21.91 | -8.43 | 266.88 | -34.97 | 113.40 | 0.6200 | 935.4 | 348.5 | |
| 4.61 | -13.00 | 2.91 | -13.00 | -8.18 | 266.50 | -35.35 | 112.78 | 0.6234 | 721.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -8.46 | 266.43 | -35.42 | 113.16 | 0.6258 | 398.0 | 361.5 | |
| 2.66 | 9.57 | 1.69 | 6.09 | -8.67 | 266.18 | -35.67 | 113.32 | 0.6300 | 681.2 | 496.4 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -8.02 | 266.10 | -35.75 | 112.31 | 0.6276 | 613.0 | 479.7 | |
| 0.00 | 2.21 | 0.00 | 1.40 | -7.77 | 266.09 | -35.76 | 111.94 | 0.6265 | 477.0 | 421.7 | |
| 0.00 | 1.77 | 0.00 | 1.13 | -8.63 | 265.89 | -35.96 | 113.08 | 0.6334 | 357.0 | 260.7 | |
| 0.00 | 1.51 | 0.00 | 0.96 | -8.30 | 265.70 | -36.15 | 112.48 | 0.6341 | 590.0 | 378.0 | |
| 0.89 | 2.21 | 0.57 | 1.44 | -8.62 | 264.75 | -37.10 | 112.40 | 0.6474 | 708.1 | 522.3 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -14.60 | 262.79 | -39.06 | 119.33 | 0.7018 | 552.0 | 433.0 | |
| 0.00 | 1.68 | 0.00 | 1.14 | -10.49 | 262.39 | -39.46 | 113.69 | 0.6848 | -846.0 | -748.1 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -10.51 | 262.19 | -39.66 | 113.60 | 0.6872 | -677.0 | -559.7 | |
| 2.83 | 20.64 | 1.93 | 14.07 | -10.30 | 262.06 | -39.79 | 113.25 | 0.6876 | -1017.7 | -649.9 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -9.24 | 262.06 | -39.80 | 111.80 | 0.6827 | -636.0 | -544.3 | |
| 3.99 | -25.00 | 2.72 | -25.00 | -10.23 | 261.79 | -40.06 | 113.01 | 0.6904 | -847.0 | 999999 | |
| 0.80 | -25.00 | 0.54 | -25.00 | -10.05 | 261.70 | -40.15 | 112.71 | 0.6906 | -745.7 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.91 | -9.43 | 261.59 | -40.26 | 111.82 | 0.6891 | -667.0 | -553.1 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -10.92 | 261.03 | -40.82 | 113.53 | 0.7023 | -346.0 | -444.0 | |
| 0.00 | 1.15 | 0.00 | 0.80 | -11.15 | 260.87 | -40.98 | 113.75 | 0.7053 | -491.0 | -384.7 | |
| 0.00 | 1.42 | 0.00 | 0.99 | -11.32 | 260.76 | -41.09 | 113.91 | 0.7073 | -595.0 | -442.4 | |
| 1.51 | 4.07 | 1.05 | 2.83 | -10.68 | 260.83 | -41.02 | 113.11 | 0.7036 | 345.8 | 47.4 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -9.67 | 260.91 | -40.94 | 111.80 | 0.6981 | -636.0 | -482.0 | |
| 2.39 | 3.99 | 1.68 | 2.80 | -11.29 | 260.36 | -41.50 | 113.66 | 0.7117 | -720.0 | -559.1 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -12.31 | 259.87 | -41.98 | 114.73 | 0.7218 | -802.0 | -669.6 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -10.75 | 260.04 | -41.81 | 112.79 | 0.7128 | 396.0 | 380.7 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -12.10 | 259.79 | -42.06 | 114.41 | 0.7217 | -347.0 | -353.5 | |
| 3.37 | 158.82 | 2.43 | 115.88 | -12.25 | 259.13 | -42.72 | 114.27 | 0.7296 | -926.8 | -256.0 | |
| 24.45 | -39.00 | 17.83 | -39.00 | -13.00 | 258.85 | -43.01 | 115.08 | 0.7361 | -1012.7 | 999999 | |
| 2.13 | -39.00 | 1.55 | -39.00 | -12.44 | 258.75 | -43.10 | 114.32 | 0.7345 | -784.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
