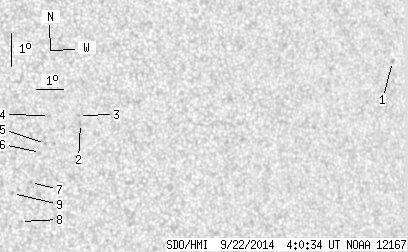

SDO HMI 2014-09-22 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.07 | 0.00 | 6.36 | 7.61 | 331.43 | 30.12 | 272.78 | 0.4983 | 552.3 | 368.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 1.10 | 9.30 | 342.25 | 40.94 | 276.05 | 0.6526 | -668.0 | -559.7 | |
| 0.00 | 1.51 | 0.00 | 0.85 | 8.25 | 330.48 | 29.17 | 274.29 | 0.4857 | 731.0 | 570.1 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 8.50 | 330.43 | 29.12 | 274.80 | 0.4850 | 624.0 | 503.9 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 8.56 | 329.42 | 28.12 | 274.95 | 0.4698 | 792.0 | 632.4 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 7.73 | 329.22 | 27.92 | 273.17 | 0.4666 | 682.0 | 539.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 7.47 | 329.03 | 27.73 | 272.60 | 0.4637 | 688.0 | 550.5 | |
| 0.00 | 1.51 | 0.00 | 0.84 | 6.58 | 328.63 | 27.33 | 270.66 | 0.4580 | 770.0 | 603.6 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 5.43 | 328.23 | 26.92 | 268.06 | 0.4529 | 661.0 | 551.1 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 6.29 | 328.00 | 26.70 | 269.93 | 0.4484 | 691.0 | 537.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
