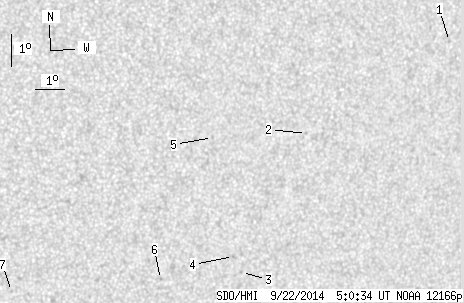

SDO HMI 2014-09-22 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.90 | 0.00 | 4.01 | -10.06 | 326.91 | 26.15 | 236.63 | 0.5228 | -53.0 | -21.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.59 | -5.53 | 333.72 | 32.97 | 249.89 | 0.5789 | 94.0 | 104.7 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -8.06 | 328.85 | 28.10 | 242.14 | 0.5295 | -646.0 | -549.3 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -12.32 | 327.00 | 26.25 | 233.52 | 0.5395 | 659.0 | 419.8 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -11.79 | 326.68 | 25.92 | 233.98 | 0.5311 | 821.0 | 652.0 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -8.00 | 325.65 | 24.90 | 239.20 | 0.4873 | -140.0 | -131.6 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -12.39 | 324.26 | 23.50 | 230.32 | 0.5081 | -650.0 | -574.2 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -12.54 | 319.34 | 18.59 | 223.38 | 0.4549 | -509.0 | -457.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
