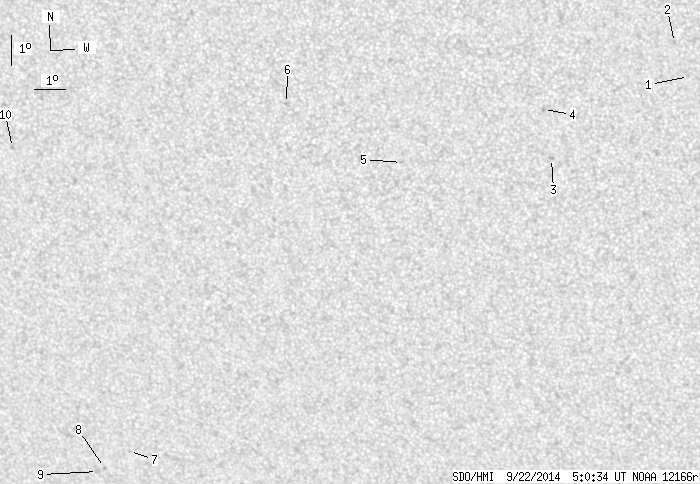

SDO HMI 2014-09-22 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.83 | 0.00 | 7.30 | -17.18 | 286.65 | -14.11 | 153.11 | 0.4737 | 680.6 | 521.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.41 | -10.58 | 299.91 | -0.85 | 177.25 | 0.3047 | 714.0 | 484.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.51 | 299.48 | -1.27 | 175.61 | 0.2873 | 864.0 | 705.6 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -13.21 | 295.65 | -5.10 | 165.95 | 0.3583 | 751.0 | 668.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.65 | 295.44 | -5.32 | 164.18 | 0.3343 | 868.0 | 720.7 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -13.41 | 290.97 | -9.79 | 154.59 | 0.3870 | 766.0 | 614.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -11.62 | 287.43 | -13.32 | 144.54 | 0.3908 | 774.0 | 636.1 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -23.37 | 281.11 | -19.64 | 148.31 | 0.5897 | 617.0 | 480.4 | |
| 0.00 | 1.59 | 0.00 | 0.99 | -23.97 | 280.14 | -20.62 | 147.67 | 0.6039 | 592.0 | 486.7 | |
| 0.00 | 2.48 | 0.00 | 1.54 | -24.13 | 279.86 | -20.89 | 147.48 | 0.6076 | 118.0 | 254.5 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -13.36 | 278.42 | -22.34 | 132.60 | 0.5044 | 742.0 | 585.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
