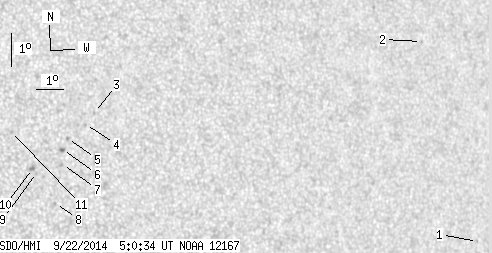

SDO HMI 2014-09-22 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.64 | 0.00 | 7.78 | 6.99 | 330.33 | 29.58 | 271.69 | 0.4904 | 469.5 | 464.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.36 | 3.17 | 343.99 | 43.24 | 267.11 | 0.6872 | -616.0 | -496.2 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 9.36 | 342.32 | 41.56 | 276.16 | 0.6607 | -640.0 | -559.8 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 8.10 | 329.91 | 29.16 | 273.98 | 0.4855 | 687.0 | 474.8 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 7.76 | 329.57 | 28.82 | 273.27 | 0.4804 | 682.0 | 542.3 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 7.38 | 328.92 | 28.17 | 272.44 | 0.4705 | 739.0 | 569.7 | |
| 0.00 | 1.77 | 0.00 | 0.99 | 7.06 | 328.73 | 27.97 | 271.74 | 0.4676 | 805.0 | 737.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 6.61 | 328.70 | 27.94 | 270.77 | 0.4675 | 632.0 | 551.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 5.45 | 328.39 | 27.64 | 268.24 | 0.4639 | 701.0 | 564.5 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 6.42 | 327.80 | 27.04 | 270.26 | 0.4537 | 587.0 | 523.1 | |
| 0.00 | 2.48 | 0.00 | 1.38 | 6.54 | 327.67 | 26.92 | 270.53 | 0.4516 | 837.0 | 726.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 7.70 | 327.03 | 26.28 | 273.08 | 0.4412 | 750.0 | 646.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
