SDO HMI 2014-09-22 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.12 | 264.16 | 29.29 | 133.80 | 8.80 | 289.64 | -11.12 | 80.38 | 0.2003 | -499.1 | -301.3 | |
|
previous
or next observation for the same group /

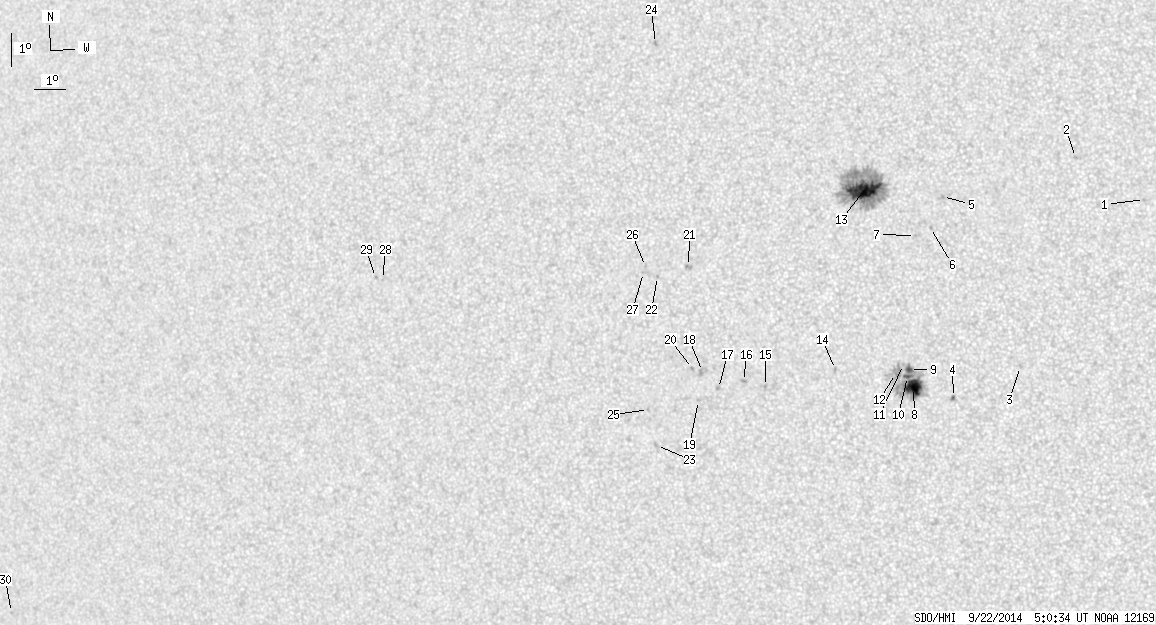

back to the solar disc SDO HMI 2014-09-22 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.57 | 10.82 | 298.55 | -2.20 | 29.87 | 0.0761 | -837.0 | -644.7 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 12.08 | 296.42 | -4.34 | 40.10 | 0.1153 | -913.0 | -736.8 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 5.77 | 294.82 | -5.94 | 102.02 | 0.1057 | 805.0 | 701.1 | |
| 0.44 | 2.39 | 0.22 | 1.20 | 4.81 | 292.79 | -7.97 | 105.44 | 0.1440 | 1043.0 | 816.5 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 10.85 | 292.34 | -8.42 | 64.89 | 0.1596 | -968.0 | -805.7 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 9.91 | 291.99 | -8.77 | 71.19 | 0.1593 | -1042.0 | -753.9 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 9.66 | 291.53 | -9.22 | 73.45 | 0.1656 | -862.0 | -675.4 | |
| 19.67 | 56.08 | 9.87 | 28.16 | 5.09 | 291.56 | -9.19 | 101.67 | 0.1633 | -1256.0 | -564.4 | |
| 2.57 | -8.00 | 1.29 | -8.00 | 5.63 | 291.43 | -9.32 | 98.26 | 0.1637 | -1021.1 | 999999 | |
| 1.51 | -8.00 | 0.76 | -8.00 | 5.42 | 291.37 | -9.38 | 99.48 | 0.1653 | -1072.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 5.77 | 291.24 | -9.51 | 97.21 | 0.1665 | -366.0 | -348.8 | |
| 0.00 | 13.64 | 0.00 | 6.86 | 5.50 | 291.00 | -9.75 | 98.60 | 0.1713 | -750.0 | -580.3 | |
| 33.93 | 152.47 | 17.15 | 77.07 | 10.99 | 289.88 | -10.88 | 69.14 | 0.1992 | -1261.6 | -445.6 | |
| 0.00 | 1.95 | 0.00 | 0.99 | 5.58 | 289.16 | -11.60 | 96.66 | 0.2024 | 954.0 | 744.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 5.01 | 287.00 | -13.76 | 97.75 | 0.2402 | 914.0 | 710.4 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 5.14 | 286.31 | -14.45 | 96.80 | 0.2513 | 1103.0 | 946.0 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 4.91 | 285.53 | -15.22 | 97.25 | 0.2649 | 764.0 | 688.6 | |
| 0.00 | 6.38 | 0.00 | 3.28 | 5.40 | 285.02 | -15.74 | 95.15 | 0.2723 | 846.0 | 737.8 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 4.53 | 284.91 | -15.84 | 98.27 | 0.2762 | 794.0 | 600.9 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 5.48 | 284.70 | -16.05 | 94.73 | 0.2774 | 870.0 | 683.4 | |
| 0.00 | 2.92 | 0.00 | 1.51 | 8.55 | 284.47 | -16.28 | 83.66 | 0.2802 | 721.0 | 784.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 8.21 | 283.50 | -17.25 | 85.02 | 0.2960 | 941.0 | 706.8 | |
| 0.00 | 2.57 | 0.00 | 1.33 | 3.13 | 283.62 | -17.14 | 102.12 | 0.3023 | 788.0 | 581.8 | |
| 0.00 | 2.21 | 0.00 | 1.16 | 15.24 | 282.98 | -17.77 | 63.32 | 0.3310 | -835.0 | -747.4 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 4.20 | 283.35 | -17.41 | 98.44 | 0.3030 | 665.0 | 533.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 8.50 | 283.11 | -17.65 | 84.13 | 0.3028 | 833.0 | 697.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 8.32 | 283.05 | -17.71 | 84.74 | 0.3035 | 723.0 | 590.9 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 7.73 | 274.51 | -26.24 | 86.84 | 0.4406 | 727.0 | 503.6 | |
| 0.00 | 1.42 | 0.00 | 0.78 | 7.78 | 274.27 | -26.48 | 86.73 | 0.4444 | 713.0 | 595.5 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -3.22 | 261.36 | -39.40 | 103.37 | 0.6536 | 710.0 | 563.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
