SDO HMI 2014-09-22 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.92 | 457.47 | 67.46 | 297.70 | -10.34 | 264.42 | -36.33 | 115.39 | 0.6445 | 207.8 | 102.0 | |
|
previous
or next observation for the same group /

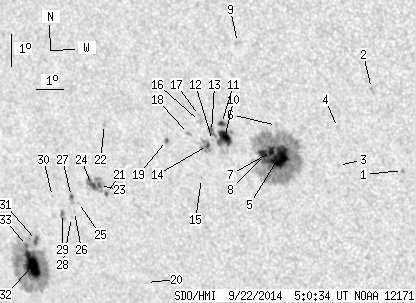

back to the solar disc SDO HMI 2014-09-22 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.83 | -9.01 | 273.26 | -27.49 | 120.00 | 0.5285 | 798.0 | 649.0 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -6.52 | 272.38 | -28.37 | 114.99 | 0.5230 | 770.0 | 673.5 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -8.99 | 271.04 | -29.71 | 118.02 | 0.5568 | 724.0 | 592.0 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -7.80 | 271.11 | -29.65 | 116.15 | 0.5481 | 537.0 | 339.3 | |
| 28.53 | 206.59 | 17.36 | 125.80 | -8.88 | 268.92 | -31.84 | 116.19 | 0.5830 | 1154.6 | 382.7 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -7.88 | 268.94 | -31.81 | 114.64 | 0.5767 | 252.0 | 175.5 | |
| 5.14 | -5.00 | 3.13 | -5.00 | -8.71 | 268.69 | -32.07 | 115.75 | 0.5849 | 1092.0 | 999999 | |
| 7.62 | -5.00 | 4.66 | -5.00 | -8.82 | 268.42 | -32.33 | 115.74 | 0.5889 | 791.9 | 999999 | |
| 0.00 | 2.92 | 0.00 | 1.77 | -5.39 | 267.73 | -33.03 | 109.85 | 0.5791 | 647.0 | 564.4 | |
| 14.17 | 36.50 | 8.80 | 22.67 | -8.41 | 267.01 | -33.75 | 114.14 | 0.6045 | 952.4 | 509.5 | |
| 2.30 | -10.00 | 1.43 | -10.00 | -7.95 | 266.94 | -33.81 | 113.40 | 0.6027 | 897.7 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -8.51 | 266.56 | -34.20 | 113.99 | 0.6107 | 566.0 | 428.2 | |
| 3.10 | -10.00 | 1.93 | -10.00 | -8.23 | 266.55 | -34.21 | 113.56 | 0.6093 | 711.1 | 999999 | |
| 1.68 | 11.43 | 1.05 | 7.17 | -8.68 | 266.35 | -34.40 | 114.12 | 0.6142 | 791.7 | 512.7 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -9.73 | 266.01 | -34.75 | 115.45 | 0.6244 | 472.0 | 341.5 | |
| 0.00 | 3.10 | 0.00 | 1.94 | -7.95 | 266.13 | -34.62 | 112.87 | 0.6130 | 595.0 | 455.7 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -7.76 | 266.15 | -34.60 | 112.60 | 0.6118 | 594.0 | 468.1 | |
| 0.00 | 2.13 | 0.00 | 1.34 | -8.35 | 265.68 | -35.07 | 113.20 | 0.6208 | 540.0 | 333.4 | |
| 0.80 | 1.77 | 0.51 | 1.13 | -8.63 | 264.83 | -35.93 | 113.10 | 0.6329 | 682.9 | 537.7 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -13.22 | 263.39 | -37.37 | 118.60 | 0.6752 | 468.0 | 464.5 | |
| 0.80 | 23.65 | 0.53 | 15.86 | -10.49 | 262.28 | -38.48 | 114.22 | 0.6732 | -835.8 | -688.6 | |
| 0.00 | 2.04 | 0.00 | 1.34 | -8.31 | 262.49 | -38.26 | 111.30 | 0.6600 | -729.0 | -520.1 | |
| 1.86 | -21.00 | 1.25 | -21.00 | -10.25 | 262.04 | -38.72 | 113.77 | 0.6748 | -1094.0 | 999999 | |
| 5.85 | -21.00 | 3.93 | -21.00 | -10.25 | 261.73 | -39.03 | 113.58 | 0.6785 | -789.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -10.86 | 261.11 | -39.64 | 114.08 | 0.6886 | -467.0 | -420.2 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -11.16 | 260.90 | -39.85 | 114.37 | 0.6925 | -509.0 | -404.2 | |
| 0.80 | 3.99 | 0.54 | 2.72 | -10.69 | 260.86 | -39.89 | 113.71 | 0.6907 | 408.0 | 74.5 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -11.36 | 260.75 | -40.01 | 114.55 | 0.6952 | -638.0 | -507.2 | |
| 1.06 | 4.52 | 0.73 | 3.12 | -11.27 | 260.40 | -40.35 | 114.23 | 0.6987 | -782.9 | -592.8 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -10.76 | 260.09 | -40.67 | 113.38 | 0.6999 | 516.0 | 446.7 | |
| 2.92 | 146.35 | 2.07 | 105.01 | -12.22 | 259.17 | -41.59 | 114.82 | 0.7171 | -909.1 | -230.4 | |
| 25.34 | -31.00 | 18.15 | -31.00 | -13.05 | 258.83 | -41.92 | 115.69 | 0.7246 | -1034.1 | 999999 | |
| 1.95 | -31.00 | 1.39 | -31.00 | -12.42 | 258.71 | -42.04 | 114.83 | 0.7230 | -749.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
