SDO HMI 2014-09-22 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.22 | 449.35 | 57.81 | 291.30 | -10.48 | 264.24 | -35.97 | 115.83 | 0.6408 | 155.7 | 108.8 | |
|
previous
or next observation for the same group /

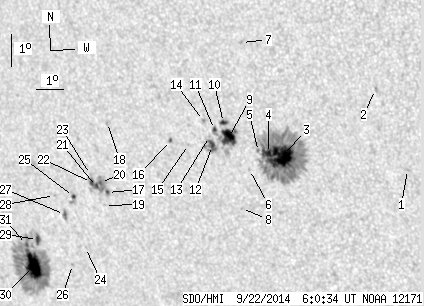

back to the solar disc SDO HMI 2014-09-22 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 0.98 | -9.02 | 273.30 | -26.91 | 120.54 | 0.5210 | 691.0 | 546.2 | |
| 0.00 | 1.95 | 0.00 | 1.13 | -6.58 | 272.38 | -27.83 | 115.55 | 0.5160 | 821.0 | 639.4 | |
| 25.34 | 197.92 | 15.32 | 119.69 | -8.84 | 268.95 | -31.26 | 116.56 | 0.5754 | 1210.1 | 442.3 | |
| 3.72 | -3.00 | 2.26 | -3.00 | -8.81 | 268.45 | -31.76 | 116.14 | 0.5816 | 870.6 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.08 | -8.77 | 268.10 | -32.11 | 115.82 | 0.5858 | 284.0 | 290.4 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -9.36 | 267.71 | -32.50 | 116.45 | 0.5943 | 464.0 | 397.8 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -5.42 | 267.76 | -32.45 | 110.24 | 0.5715 | 668.0 | 630.1 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -10.62 | 267.27 | -32.93 | 118.01 | 0.6075 | 417.0 | 315.5 | |
| 14.62 | 41.64 | 9.01 | 25.75 | -8.41 | 267.04 | -33.16 | 114.52 | 0.5970 | 941.8 | 531.3 | |
| 2.30 | 3.63 | 1.42 | 2.24 | -7.95 | 266.91 | -33.30 | 113.72 | 0.5962 | 883.0 | 738.5 | |
| 1.33 | -9.00 | 0.82 | -9.00 | -8.19 | 266.55 | -33.65 | 113.86 | 0.6020 | 658.1 | 999999 | |
| 4.43 | -9.00 | 2.75 | -9.00 | -8.70 | 266.43 | -33.78 | 114.55 | 0.6064 | 720.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -8.42 | 266.35 | -33.86 | 114.08 | 0.6059 | 435.0 | 384.9 | |
| 0.00 | 1.59 | 0.00 | 0.99 | -7.94 | 266.18 | -34.03 | 113.23 | 0.6054 | 691.0 | 556.3 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -8.73 | 265.54 | -34.67 | 114.02 | 0.6178 | -104.0 | -99.5 | |
| 0.62 | 2.13 | 0.39 | 1.35 | -8.65 | 264.88 | -35.33 | 113.49 | 0.6256 | 512.9 | 429.5 | |
| 0.80 | 21.09 | 0.53 | 14.03 | -10.48 | 262.24 | -37.97 | 114.51 | 0.6671 | -896.7 | -721.2 | |
| 0.00 | 1.95 | 0.00 | 1.27 | -8.27 | 262.53 | -37.68 | 111.56 | 0.6526 | -602.0 | -471.9 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -10.90 | 262.06 | -38.15 | 114.98 | 0.6714 | -609.0 | -493.6 | |
| 0.89 | -17.00 | 0.59 | -17.00 | -10.18 | 262.01 | -38.20 | 113.96 | 0.6683 | -1153.4 | 999999 | |
| 2.04 | -17.00 | 1.36 | -17.00 | -10.32 | 261.84 | -38.37 | 114.05 | 0.6711 | -884.6 | 999999 | |
| 1.95 | -17.00 | 1.30 | -17.00 | -10.21 | 261.66 | -38.55 | 113.80 | 0.6727 | -784.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -9.96 | 261.65 | -38.56 | 113.45 | 0.6715 | -699.0 | -626.3 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -12.31 | 261.08 | -39.13 | 116.30 | 0.6901 | 389.0 | 277.0 | |
| 1.24 | 5.76 | 0.84 | 3.90 | -10.71 | 260.87 | -39.34 | 114.04 | 0.6843 | 342.1 | 6.8 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -12.90 | 260.44 | -39.76 | 116.70 | 0.7002 | -653.0 | -545.5 | |
| 0.89 | 3.99 | 0.61 | 2.73 | -11.32 | 260.41 | -39.80 | 114.60 | 0.6926 | -819.1 | -612.7 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -10.74 | 260.10 | -40.10 | 113.66 | 0.6933 | 579.0 | 391.4 | |
| 2.92 | 154.86 | 2.05 | 110.11 | -12.21 | 259.15 | -41.05 | 115.09 | 0.7111 | -923.8 | -233.6 | |
| 24.89 | -29.00 | 17.68 | -29.00 | -13.10 | 258.81 | -41.40 | 116.04 | 0.7191 | -1056.4 | 999999 | |
| 1.24 | -29.00 | 0.88 | -29.00 | -12.41 | 258.66 | -41.54 | 115.08 | 0.7174 | -684.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
