SDO HMI 2014-09-22 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.49 | 876.71 | 176.31 | 991.54 | -11.08 | 238.73 | -61.48 | 106.11 | 0.8976 | -17.8 | -103.1 | |
|
previous
or next observation for the same group /

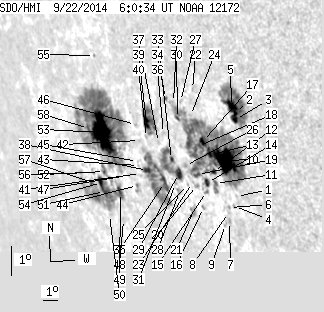

back to the solar disc SDO HMI 2014-09-22 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.26 | -12.02 | 243.48 | -56.73 | 108.44 | 0.8640 | 571.0 | 470.7 | |
| 3.37 | 65.65 | 3.17 | 61.59 | -9.35 | 244.20 | -56.01 | 105.63 | 0.8516 | 760.7 | 458.8 | |
| 3.37 | -2.00 | 3.17 | -2.00 | -9.54 | 244.15 | -56.06 | 105.84 | 0.8525 | 585.4 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.49 | -12.36 | 243.25 | -56.95 | 108.75 | 0.8667 | 548.0 | 517.0 | |
| 9.48 | -2.00 | 8.93 | -2.00 | -9.15 | 244.03 | -56.18 | 105.36 | 0.8527 | 810.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.32 | -12.43 | 242.95 | -57.26 | 108.73 | 0.8694 | 533.0 | 534.8 | |
| 0.00 | 1.68 | 0.00 | 1.69 | -12.89 | 242.78 | -57.43 | 109.18 | 0.8718 | 574.0 | 441.9 | |
| 0.00 | 1.68 | 0.00 | 1.68 | -12.60 | 242.83 | -57.38 | 108.88 | 0.8707 | 509.0 | 442.5 | |
| 0.00 | 1.77 | 0.00 | 1.80 | -13.01 | 242.50 | -57.70 | 109.24 | 0.8743 | 393.0 | 368.2 | |
| 34.37 | 266.31 | 33.59 | 265.04 | -10.93 | 243.15 | -57.06 | 107.11 | 0.8642 | 848.3 | 150.5 | |
| 1.15 | 6.47 | 1.16 | 6.52 | -11.73 | 242.37 | -57.83 | 107.78 | 0.8724 | 571.1 | 487.2 | |
| 1.95 | -10.00 | 1.95 | -10.00 | -11.35 | 242.38 | -57.82 | 107.36 | 0.8715 | 464.1 | 999999 | |
| 3.10 | -10.00 | 3.10 | -10.00 | -10.82 | 242.38 | -57.83 | 106.77 | 0.8703 | 398.4 | 999999 | |
| 2.83 | -10.00 | 2.89 | -10.00 | -11.75 | 241.90 | -58.31 | 107.66 | 0.8762 | 425.6 | 999999 | |
| 0.35 | 1.68 | 0.36 | 1.73 | -12.05 | 241.74 | -58.47 | 107.95 | 0.8782 | 320.0 | 251.6 | |
| 0.00 | 1.59 | 0.00 | 1.67 | -12.60 | 241.36 | -58.85 | 108.44 | 0.8824 | 294.0 | 281.3 | |
| 3.54 | -10.00 | 3.57 | -10.00 | -10.45 | 242.03 | -58.18 | 106.26 | 0.8724 | 389.4 | 999999 | |
| 1.95 | -10.00 | 1.97 | -10.00 | -10.60 | 241.80 | -58.40 | 106.36 | 0.8745 | -163.8 | 999999 | |
| 1.95 | -10.00 | 2.02 | -10.00 | -11.55 | 241.37 | -58.84 | 107.30 | 0.8800 | 302.8 | 999999 | |
| 0.00 | 2.21 | 0.00 | 2.31 | -11.92 | 241.18 | -59.02 | 107.65 | 0.8823 | 321.0 | 240.8 | |
| 0.00 | 6.82 | 0.00 | 7.29 | -12.76 | 240.68 | -59.52 | 108.43 | 0.8879 | 142.0 | 157.2 | |
| 0.00 | 1.15 | 0.00 | 1.15 | -8.84 | 241.89 | -58.32 | 104.43 | 0.8702 | 403.0 | 338.8 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -11.85 | 240.97 | -59.24 | 107.51 | 0.8838 | 277.0 | 256.3 | |
| 0.00 | 2.48 | 0.00 | 2.52 | -9.69 | 241.54 | -58.66 | 105.28 | 0.8748 | 129.0 | 20.2 | |
| 0.00 | 0.97 | 0.00 | 1.03 | -11.94 | 240.69 | -59.52 | 107.53 | 0.8861 | 132.0 | 135.7 | |
| 0.00 | 1.77 | 0.00 | 1.87 | -11.34 | 240.72 | -59.49 | 106.88 | 0.8847 | -173.0 | -144.2 | |
| 0.00 | 1.24 | 0.00 | 1.27 | -9.31 | 241.06 | -59.15 | 104.72 | 0.8780 | 264.0 | 182.0 | |
| 0.00 | 3.37 | 0.00 | 3.66 | -12.24 | 240.02 | -60.18 | 107.67 | 0.8918 | 442.0 | 335.4 | |
| 6.02 | 108.53 | 6.47 | 121.43 | -11.65 | 240.18 | -60.03 | 107.07 | 0.8894 | 311.4 | -324.6 | |
| 1.33 | -10.00 | 1.38 | -10.00 | -9.87 | 240.71 | -59.50 | 105.26 | 0.8818 | -200.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.16 | -12.00 | 239.86 | -60.35 | 107.37 | 0.8925 | 211.0 | 183.7 | |
| 0.00 | 1.86 | 0.00 | 1.94 | -9.38 | 240.61 | -59.60 | 104.70 | 0.8817 | -518.0 | -515.8 | |
| 1.68 | -29.00 | 1.82 | -29.00 | -11.24 | 239.89 | -60.32 | 106.55 | 0.8908 | 118.1 | 999999 | |
| 0.53 | 2.92 | 0.56 | 3.10 | -9.31 | 240.14 | -60.07 | 104.49 | 0.8852 | -616.0 | -498.6 | |
| 6.82 | -29.00 | 7.62 | -29.00 | -12.05 | 239.15 | -61.06 | 107.22 | 0.8979 | 287.8 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.92 | -10.46 | 239.66 | -60.55 | 105.63 | 0.8910 | -282.0 | -244.0 | |
| 0.00 | 1.51 | 0.00 | 1.66 | -10.78 | 239.23 | -60.98 | 105.87 | 0.8949 | -302.0 | -251.4 | |
| 4.16 | -29.00 | 4.80 | -29.00 | -11.78 | 238.14 | -62.06 | 106.67 | 0.9046 | -507.3 | 999999 | |
| 6.20 | 27.82 | 6.93 | 30.89 | -10.22 | 238.66 | -61.55 | 105.11 | 0.8981 | -703.0 | -593.2 | |
| 0.00 | 1.06 | 0.00 | 1.20 | -10.71 | 238.48 | -61.72 | 105.60 | 0.9003 | -525.0 | -511.6 | |
| 0.00 | 0.35 | 0.00 | 0.42 | -11.94 | 237.61 | -62.60 | 106.70 | 0.9086 | -200.0 | -237.8 | |
| 0.00 | 0.80 | 0.00 | 0.92 | -10.86 | 237.97 | -62.24 | 105.63 | 0.9042 | -215.0 | -197.0 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -11.69 | 237.58 | -62.63 | 106.43 | 0.9084 | -428.0 | -456.3 | |
| 0.44 | 3.90 | 0.53 | 4.67 | -12.36 | 237.23 | -62.98 | 107.05 | 0.9120 | -561.4 | -504.9 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -11.56 | 237.56 | -62.65 | 106.29 | 0.9083 | -589.0 | -599.0 | |
| 0.00 | 1.15 | 0.00 | 1.32 | -10.37 | 237.88 | -62.33 | 105.08 | 0.9040 | -436.0 | -354.0 | |
| 0.00 | 0.71 | 0.00 | 0.86 | -12.11 | 236.65 | -63.56 | 106.64 | 0.9155 | -596.0 | -588.0 | |
| 0.00 | 1.77 | 0.00 | 2.28 | -13.61 | 235.64 | -64.57 | 107.98 | 0.9244 | -226.0 | -239.2 | |
| 4.34 | 347.55 | 5.49 | 446.78 | -12.73 | 235.86 | -64.34 | 107.11 | 0.9216 | -596.2 | -253.3 | |
| 0.00 | 0.71 | 0.00 | 0.95 | -13.57 | 234.63 | -65.58 | 107.68 | 0.9306 | -452.0 | -424.1 | |
| 0.27 | -49.00 | 0.35 | -49.00 | -12.84 | 234.63 | -65.58 | 106.92 | 0.9295 | -722.7 | 999999 | |
| 0.97 | -49.00 | 1.27 | -49.00 | -12.17 | 234.96 | -65.25 | 106.30 | 0.9265 | -464.2 | 999999 | |
| 49.52 | -49.00 | 62.83 | -49.00 | -10.90 | 235.38 | -64.83 | 105.05 | 0.9219 | -629.9 | 999999 | |
| 4.08 | -49.00 | 5.43 | -49.00 | -12.57 | 234.54 | -65.67 | 106.61 | 0.9297 | -561.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.09 | -8.47 | 235.70 | -64.51 | 102.53 | 0.9163 | -321.0 | -351.4 | |
| 0.00 | 1.59 | 0.00 | 2.16 | -12.31 | 234.06 | -66.15 | 106.23 | 0.9322 | -61.0 | -16.4 | |
| 0.89 | -49.00 | 1.22 | -49.00 | -12.66 | 233.72 | -66.48 | 106.52 | 0.9347 | -151.2 | 999999 | |
| 2.83 | -49.00 | 3.73 | -49.00 | -10.89 | 234.34 | -65.86 | 104.81 | 0.9285 | 314.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
