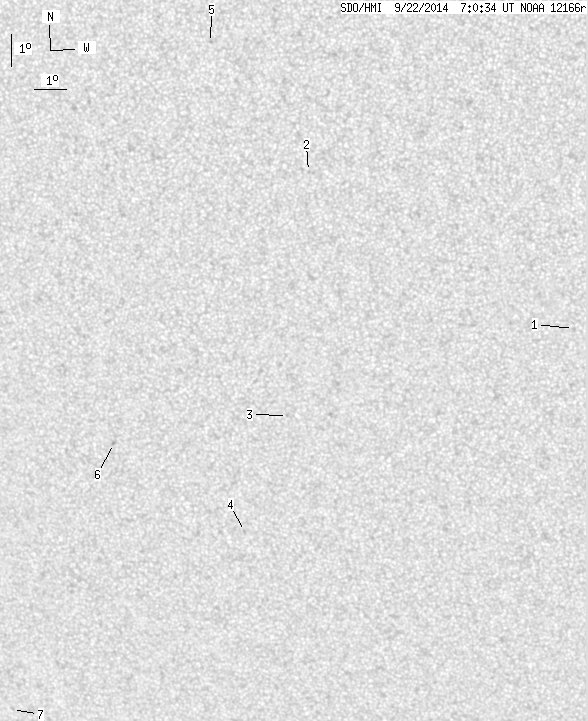

SDO HMI 2014-09-22 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.76 | 0.00 | 4.69 | -11.47 | 290.53 | -9.13 | 153.87 | 0.3616 | 729.6 | 562.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.77 | 0.00 | 0.92 | -10.49 | 299.82 | 0.16 | 180.52 | 0.3028 | 513.0 | 414.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -5.65 | 291.79 | -7.87 | 148.08 | 0.2590 | 740.0 | 656.2 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -13.34 | 290.94 | -8.72 | 156.97 | 0.3787 | 813.0 | 581.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -17.14 | 289.40 | -10.26 | 157.35 | 0.4439 | 812.0 | 584.4 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -1.76 | 288.84 | -10.82 | 128.81 | 0.2420 | 838.0 | 632.0 | |
| 0.00 | 1.68 | 0.00 | 0.93 | -14.37 | 285.38 | -14.28 | 146.54 | 0.4353 | 793.0 | 593.4 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -23.44 | 281.08 | -18.58 | 149.76 | 0.5827 | 598.0 | 493.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
