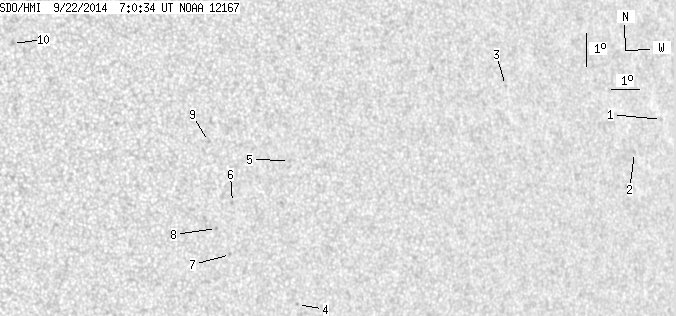

SDO HMI 2014-09-22 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.67 | 0.00 | 7.52 | 8.19 | 332.33 | 32.67 | 274.71 | 0.5342 | 385.1 | 318.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 1.00 | 8.32 | 345.29 | 45.63 | 274.73 | 0.7120 | -548.0 | -358.8 | |
| 0.00 | 1.15 | 0.00 | 0.79 | 7.43 | 344.00 | 44.34 | 273.41 | 0.6966 | -40.0 | -112.1 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 9.87 | 339.04 | 39.38 | 276.98 | 0.6320 | -595.0 | -493.6 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 3.84 | 330.76 | 31.10 | 265.73 | 0.5189 | 652.0 | 584.8 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 8.19 | 330.76 | 31.10 | 274.16 | 0.5147 | 619.0 | 506.7 | |
| 0.00 | 1.51 | 0.00 | 0.85 | 7.05 | 328.67 | 29.01 | 271.81 | 0.4835 | 843.0 | 654.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 5.49 | 328.50 | 28.84 | 268.55 | 0.4823 | 681.0 | 576.8 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 6.30 | 328.07 | 28.41 | 270.19 | 0.4748 | 759.0 | 625.9 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 8.93 | 327.98 | 28.32 | 275.76 | 0.4730 | 660.0 | 571.4 | |
| 0.00 | 2.30 | 0.00 | 1.23 | 12.22 | 321.63 | 21.97 | 285.13 | 0.3805 | 820.0 | 655.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
