SDO HMI 2014-09-22 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.00 | 21.61 | 5.73 | 18.07 | -15.10 | 250.42 | -49.24 | 114.72 | 0.8065 | 245.4 | 216.5 | |
|
previous
or next observation for the same group /

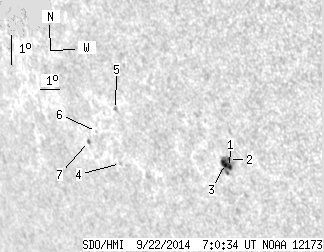

back to the solar disc SDO HMI 2014-09-22 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.95 | 16.74 | 1.58 | 13.57 | -15.30 | 251.97 | -47.69 | 115.59 | 0.7931 | 776.5 | 547.1 | |
| 0.27 | -1.00 | 0.21 | -1.00 | -15.04 | 252.01 | -47.65 | 115.30 | 0.7917 | 791.7 | 999999 | |
| 4.34 | -1.00 | 3.52 | -1.00 | -15.18 | 251.82 | -47.84 | 115.39 | 0.7941 | 767.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.98 | -15.71 | 246.46 | -53.21 | 113.77 | 0.8444 | -478.0 | -413.8 | |
| 0.00 | 1.77 | 0.00 | 1.59 | -13.94 | 246.83 | -52.83 | 111.91 | 0.8358 | -714.0 | -586.0 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -14.77 | 245.53 | -54.13 | 112.38 | 0.8494 | -427.0 | -450.3 | |
| 0.44 | 1.77 | 0.42 | 1.68 | -15.16 | 244.96 | -54.70 | 112.60 | 0.8554 | -446.0 | -317.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
