SDO HMI 2014-09-22 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.37 | 12.76 | 4.22 | 16.49 | 15.66 | 8.03 | 68.37 | 284.07 | 0.9242 | 205.5 | 66.4 | |
|
previous
or next observation for the same group /

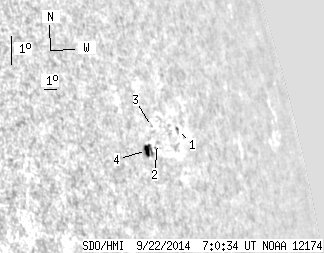

back to the solar disc SDO HMI 2014-09-22 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 3.02 | 15.87 | 10.35 | 70.69 | 284.35 | 0.9385 | -426.0 | -326.1 | |
| 0.00 | 1.24 | 0.00 | 1.62 | 15.68 | 8.38 | 68.72 | 284.10 | 0.9266 | -354.0 | -289.1 | |
| 0.00 | 0.27 | 0.00 | 0.35 | 16.23 | 8.26 | 68.60 | 284.69 | 0.9258 | 298.0 | 263.0 | |
| 3.37 | 9.12 | 4.22 | 11.50 | 15.58 | 7.37 | 67.70 | 283.97 | 0.9201 | 465.8 | 298.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
