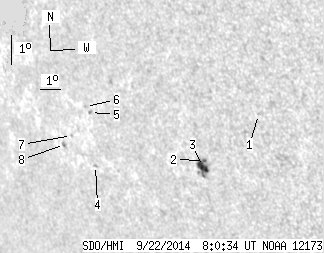

SDO HMI 2014-09-22 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.17 | 22.51 | 5.75 | 18.71 | -14.96 | 250.10 | -49.02 | 114.66 | 0.8035 | 234.5 | 55.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.86 | -13.26 | 254.85 | -44.26 | 114.75 | 0.7503 | 315.0 | 213.1 | |
| 0.44 | 14.71 | 0.35 | 11.80 | -14.99 | 251.99 | -47.12 | 115.48 | 0.7864 | 749.8 | 528.5 | |
| 6.73 | -2.00 | 5.40 | -2.00 | -15.20 | 251.84 | -47.28 | 115.65 | 0.7887 | 771.7 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.29 | -15.69 | 246.45 | -52.67 | 113.95 | 0.8397 | -485.0 | -419.7 | |
| 0.00 | 1.68 | 0.00 | 1.49 | -13.95 | 246.80 | -52.32 | 112.11 | 0.8312 | -708.0 | -615.4 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -13.78 | 246.60 | -52.52 | 111.84 | 0.8325 | -569.0 | -502.5 | |
| 0.00 | 0.89 | 0.00 | 0.82 | -14.82 | 245.51 | -53.60 | 112.62 | 0.8451 | -477.0 | -396.1 | |
| 0.00 | 1.95 | 0.00 | 1.82 | -15.16 | 245.01 | -54.10 | 112.82 | 0.8503 | -266.0 | -310.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
