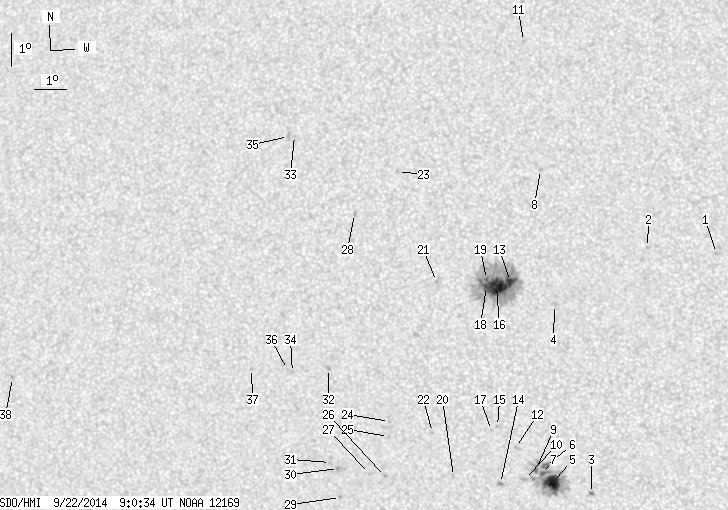

SDO HMI 2014-09-22 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.33 | 289.76 | 28.22 | 145.54 | 9.08 | 289.93 | -8.64 | 78.09 | 0.1611 | -534.6 | -380.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.40 | 12.04 | 296.57 | -2.00 | 21.33 | 0.0941 | -911.0 | -809.8 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 12.21 | 294.44 | -4.12 | 37.86 | 0.1150 | -920.0 | -630.2 | |
| 0.44 | 2.30 | 0.22 | 1.15 | 4.79 | 292.82 | -5.75 | 111.21 | 0.1076 | 978.2 | 771.4 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 10.46 | 291.61 | -6.96 | 63.07 | 0.1343 | -733.0 | -712.2 | |
| 16.56 | 80.96 | 8.27 | 40.43 | 5.11 | 291.63 | -6.94 | 105.31 | 0.1253 | -1297.0 | -597.9 | |
| 1.95 | -5.00 | 0.97 | -5.00 | 5.61 | 291.41 | -7.16 | 100.96 | 0.1269 | -962.5 | 999999 | |
| 1.59 | -5.00 | 0.80 | -5.00 | 5.37 | 291.32 | -7.24 | 102.66 | 0.1293 | -1038.6 | 999999 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 14.54 | 291.06 | -7.50 | 43.89 | 0.1832 | -814.0 | -552.7 | |
| 0.71 | -5.00 | 0.35 | -5.00 | 5.46 | 291.11 | -7.46 | 101.64 | 0.1326 | -1069.4 | 999999 | |
| 0.00 | 3.28 | 0.00 | 1.64 | 5.18 | 290.77 | -7.79 | 103.07 | 0.1392 | -719.0 | -552.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 18.43 | 290.37 | -8.20 | 34.25 | 0.2414 | -741.0 | -571.3 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 6.14 | 290.49 | -8.08 | 95.94 | 0.1411 | -840.0 | -653.0 | |
| 6.73 | 164.23 | 3.38 | 82.50 | 11.14 | 290.23 | -8.34 | 62.95 | 0.1604 | -1229.5 | -410.7 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 5.05 | 290.04 | -8.52 | 102.76 | 0.1521 | -941.0 | -684.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 6.77 | 289.93 | -8.64 | 91.34 | 0.1499 | 855.0 | 667.5 | |
| 24.54 | -13.00 | 12.32 | -13.00 | 10.98 | 289.80 | -8.77 | 64.92 | 0.1659 | -1272.6 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 6.64 | 289.75 | -8.82 | 92.10 | 0.1531 | 837.0 | 687.0 | |
| 2.57 | -13.00 | 1.29 | -13.00 | 10.97 | 289.49 | -9.08 | 65.67 | 0.1707 | -1021.4 | 999999 | |
| 1.24 | -13.00 | 0.62 | -13.00 | 11.19 | 289.48 | -9.08 | 64.55 | 0.1723 | -863.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 5.24 | 288.60 | -9.96 | 99.79 | 0.1756 | 797.0 | 606.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 11.09 | 287.93 | -10.64 | 68.13 | 0.1960 | -870.0 | -628.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 6.55 | 287.93 | -10.63 | 92.06 | 0.1843 | 900.0 | 673.3 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 14.39 | 286.56 | -12.01 | 57.08 | 0.2412 | -892.0 | -636.5 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 6.85 | 286.60 | -11.97 | 90.22 | 0.2068 | 900.0 | 659.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 6.40 | 286.58 | -11.99 | 92.41 | 0.2075 | 786.0 | 558.3 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 5.19 | 286.51 | -12.06 | 98.12 | 0.2111 | 922.0 | 805.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 5.27 | 286.01 | -12.55 | 97.40 | 0.2192 | 764.0 | 544.1 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 13.09 | 285.26 | -13.30 | 64.18 | 0.2501 | -910.0 | -706.8 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 4.52 | 285.13 | -13.44 | 99.96 | 0.2363 | 811.0 | 622.7 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 5.39 | 285.05 | -13.52 | 96.24 | 0.2351 | 1105.0 | 949.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 5.57 | 284.80 | -13.77 | 95.38 | 0.2390 | 789.0 | 636.2 | |
| 0.00 | 2.04 | 0.00 | 1.04 | 8.39 | 284.65 | -13.91 | 83.51 | 0.2405 | 1020.0 | 795.3 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 15.40 | 283.19 | -15.37 | 59.68 | 0.2974 | -753.0 | -612.2 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 8.24 | 283.53 | -15.04 | 84.44 | 0.2592 | 803.0 | 706.3 | |
| 0.00 | 4.07 | 0.00 | 2.11 | 15.36 | 283.00 | -15.57 | 60.07 | 0.2999 | -867.0 | -647.8 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 8.32 | 283.37 | -15.20 | 84.15 | 0.2620 | 857.0 | 710.4 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 8.32 | 282.23 | -16.34 | 84.43 | 0.2809 | 736.0 | 535.9 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 7.73 | 274.51 | -24.06 | 86.80 | 0.4063 | 797.0 | 697.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
