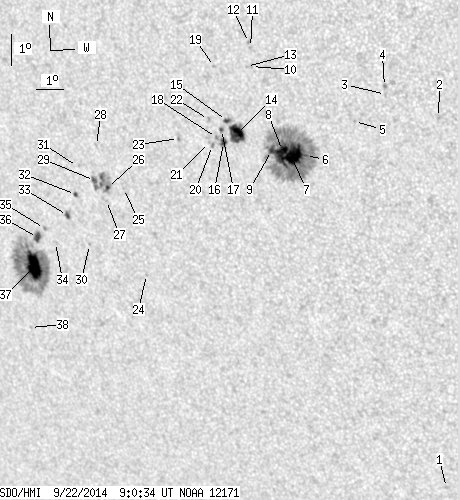

SDO HMI 2014-09-22 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.66 | 456.61 | 62.89 | 289.40 | -10.50 | 264.41 | -34.16 | 117.07 | 0.6191 | 252.7 | 78.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.44 | -19.40 | 273.09 | -25.48 | 136.94 | 0.5965 | 641.0 | 434.9 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -7.46 | 274.17 | -24.40 | 120.33 | 0.4765 | 765.0 | 658.2 | |
| 0.00 | 1.59 | 0.00 | 0.91 | -6.84 | 272.43 | -26.14 | 117.48 | 0.4950 | 598.0 | 503.3 | |
| 0.00 | 1.86 | 0.00 | 1.06 | -6.59 | 272.41 | -26.16 | 117.01 | 0.4936 | 773.0 | 612.1 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -7.74 | 271.31 | -27.25 | 118.04 | 0.5162 | 626.0 | 494.5 | |
| 0.27 | 207.98 | 0.16 | 123.58 | -8.90 | 269.53 | -29.04 | 118.42 | 0.5474 | 1094.3 | 379.1 | |
| 28.43 | -6.00 | 16.89 | -6.00 | -8.96 | 269.03 | -29.54 | 118.10 | 0.5542 | 1090.8 | 999999 | |
| 7.71 | -6.00 | 4.59 | -6.00 | -8.80 | 268.73 | -29.84 | 117.59 | 0.5569 | 1009.9 | 999999 | |
| 3.10 | -6.00 | 1.85 | -6.00 | -8.82 | 268.34 | -30.23 | 117.31 | 0.5620 | 676.1 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -6.24 | 267.84 | -30.73 | 112.73 | 0.5528 | 98.0 | 164.6 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -5.66 | 267.84 | -30.72 | 111.74 | 0.5495 | 723.0 | 540.9 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -5.51 | 267.78 | -30.79 | 111.44 | 0.5495 | 781.0 | 617.7 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -6.25 | 267.66 | -30.90 | 112.62 | 0.5552 | 769.0 | 662.3 | |
| 17.45 | 23.03 | 10.54 | 13.91 | -8.37 | 267.14 | -31.43 | 115.67 | 0.5745 | 895.8 | 632.4 | |
| 1.59 | 3.19 | 0.96 | 1.93 | -7.98 | 266.82 | -31.75 | 114.83 | 0.5764 | 810.7 | 674.6 | |
| 2.75 | 5.93 | 1.67 | 3.61 | -8.68 | 266.64 | -31.92 | 115.80 | 0.5828 | 765.4 | 557.1 | |
| 0.80 | 1.86 | 0.48 | 1.13 | -8.28 | 266.61 | -31.96 | 115.14 | 0.5808 | 672.1 | 547.5 | |
| 0.00 | 2.04 | 0.00 | 1.24 | -8.54 | 266.41 | -32.16 | 115.41 | 0.5850 | 603.0 | 485.8 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -6.33 | 266.52 | -32.05 | 111.97 | 0.5708 | 566.0 | 453.2 | |
| 0.00 | 1.95 | 0.00 | 1.19 | -8.80 | 266.24 | -32.33 | 115.69 | 0.5887 | 524.0 | 441.4 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -8.71 | 266.14 | -32.43 | 115.48 | 0.5894 | 319.0 | 264.9 | |
| 0.00 | 2.30 | 0.00 | 1.40 | -7.99 | 266.17 | -32.40 | 114.39 | 0.5848 | 636.0 | 451.0 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -8.66 | 265.01 | -33.55 | 114.63 | 0.6033 | 800.0 | 599.3 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -13.08 | 263.23 | -35.34 | 119.75 | 0.6513 | 644.0 | 560.4 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -10.39 | 262.76 | -35.80 | 115.69 | 0.6408 | 331.0 | 276.5 | |
| 1.42 | 26.49 | 0.92 | 17.21 | -10.40 | 262.15 | -36.41 | 115.33 | 0.6482 | -947.6 | -711.3 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -10.82 | 262.06 | -36.51 | 115.85 | 0.6517 | -635.0 | -495.2 | |
| 0.00 | 1.42 | 0.00 | 0.92 | -9.11 | 261.90 | -36.66 | 113.32 | 0.6443 | -485.0 | -499.4 | |
| 1.86 | -26.00 | 1.21 | -26.00 | -10.22 | 261.68 | -36.88 | 114.78 | 0.6529 | -770.7 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -12.28 | 261.17 | -37.39 | 117.30 | 0.6701 | 475.0 | 368.0 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -9.83 | 261.08 | -37.48 | 113.86 | 0.6580 | -405.0 | -429.2 | |
| 1.06 | 2.30 | 0.70 | 1.52 | -10.72 | 260.88 | -37.69 | 114.99 | 0.6651 | 370.5 | 259.7 | |
| 1.86 | 4.34 | 1.24 | 2.90 | -11.42 | 260.46 | -38.11 | 115.69 | 0.6736 | -738.7 | -590.7 | |
| 0.00 | 1.68 | 0.00 | 1.14 | -12.32 | 259.83 | -38.74 | 116.53 | 0.6856 | -308.0 | -272.8 | |
| 0.00 | 1.59 | 0.00 | 1.08 | -11.91 | 259.47 | -39.10 | 115.77 | 0.6875 | -751.0 | -641.3 | |
| 4.34 | 151.21 | 2.97 | 104.92 | -12.22 | 259.13 | -39.43 | 115.99 | 0.6929 | -863.3 | -209.0 | |
| 27.02 | -36.00 | 18.71 | -36.00 | -13.16 | 258.83 | -39.73 | 117.05 | 0.7012 | -971.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -15.17 | 258.24 | -40.33 | 119.26 | 0.7183 | -495.0 | -356.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
