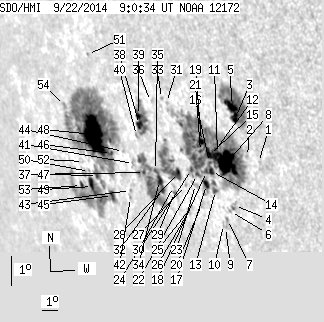

SDO HMI 2014-09-22 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 152.19 | 923.60 | 161.64 | 988.57 | -11.16 | 238.74 | -59.83 | 106.63 | 0.8853 | -27.9 | -73.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.55 | -10.75 | 245.08 | -53.48 | 108.02 | 0.8325 | -237.0 | -198.0 | |
| 0.00 | 1.59 | 0.00 | 1.44 | -10.62 | 244.54 | -54.02 | 107.69 | 0.8370 | 351.0 | 381.3 | |
| 5.49 | 65.73 | 4.94 | 59.01 | -9.43 | 244.21 | -54.36 | 106.22 | 0.8370 | 739.3 | 424.8 | |
| 0.00 | 3.37 | 0.00 | 3.16 | -12.28 | 243.37 | -55.20 | 109.21 | 0.8517 | 711.0 | 616.3 | |
| 11.87 | -3.00 | 10.69 | -3.00 | -9.07 | 244.08 | -54.49 | 105.76 | 0.8373 | 798.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.26 | -12.50 | 243.08 | -55.49 | 109.36 | 0.8548 | 522.0 | 518.4 | |
| 0.00 | 1.51 | 0.00 | 1.44 | -12.78 | 242.82 | -55.75 | 109.59 | 0.8577 | 539.0 | 540.4 | |
| 27.55 | 300.28 | 25.62 | 285.00 | -10.93 | 243.34 | -55.23 | 107.67 | 0.8485 | 856.9 | 178.8 | |
| 0.00 | 1.42 | 0.00 | 1.37 | -13.06 | 242.61 | -55.95 | 109.83 | 0.8601 | 370.0 | 391.8 | |
| 0.00 | 1.33 | 0.00 | 1.28 | -12.97 | 242.53 | -56.03 | 109.71 | 0.8605 | 401.0 | 358.8 | |
| 1.06 | -8.00 | 1.00 | -8.00 | -10.69 | 242.92 | -55.65 | 107.26 | 0.8516 | 702.2 | 999999 | |
| 2.13 | -8.00 | 2.00 | -8.00 | -10.57 | 242.84 | -55.73 | 107.11 | 0.8520 | 649.2 | 999999 | |
| 1.59 | -8.00 | 1.53 | -8.00 | -11.90 | 242.44 | -56.12 | 108.49 | 0.8586 | 543.2 | 999999 | |
| 2.92 | -8.00 | 2.80 | -8.00 | -11.31 | 242.41 | -56.16 | 107.81 | 0.8575 | 532.9 | 999999 | |
| 3.63 | -8.00 | 3.46 | -8.00 | -10.77 | 242.45 | -56.11 | 107.21 | 0.8558 | 484.9 | 999999 | |
| 0.89 | -8.00 | 0.85 | -8.00 | -11.03 | 242.38 | -56.19 | 107.48 | 0.8571 | 258.0 | 999999 | |
| 3.99 | -8.00 | 3.87 | -8.00 | -11.76 | 241.98 | -56.58 | 108.19 | 0.8621 | 414.2 | 999999 | |
| 1.51 | -8.00 | 1.45 | -8.00 | -11.34 | 242.12 | -56.45 | 107.75 | 0.8600 | 283.1 | 999999 | |
| 2.66 | -8.00 | 2.55 | -8.00 | -10.40 | 242.12 | -56.45 | 106.69 | 0.8578 | 460.9 | 999999 | |
| 0.00 | 2.21 | 0.00 | 2.19 | -12.45 | 241.47 | -57.09 | 108.79 | 0.8680 | 340.0 | 196.6 | |
| 1.06 | -8.00 | 1.02 | -8.00 | -10.73 | 241.97 | -56.60 | 107.02 | 0.8599 | 220.3 | 999999 | |
| 1.42 | -8.00 | 1.39 | -8.00 | -11.49 | 241.56 | -57.00 | 107.76 | 0.8650 | 243.6 | 999999 | |
| 0.00 | 3.37 | 0.00 | 3.33 | -11.83 | 241.34 | -57.23 | 108.07 | 0.8677 | 349.0 | 230.9 | |
| 1.15 | -8.00 | 1.14 | -8.00 | -11.37 | 241.26 | -57.31 | 107.53 | 0.8672 | -506.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.07 | -12.58 | 240.85 | -57.72 | 108.75 | 0.8733 | 373.0 | 283.5 | |
| 0.00 | 2.57 | 0.00 | 2.61 | -12.76 | 240.61 | -57.96 | 108.88 | 0.8757 | 230.0 | 182.5 | |
| 0.00 | 0.97 | 0.00 | 0.98 | -11.93 | 240.73 | -57.84 | 107.99 | 0.8728 | 283.0 | 265.5 | |
| 2.92 | 115.77 | 2.96 | 122.14 | -11.55 | 240.45 | -58.12 | 107.49 | 0.8742 | 309.4 | -259.6 | |
| 0.00 | 1.42 | 0.00 | 1.46 | -12.23 | 239.97 | -58.59 | 108.10 | 0.8795 | 465.0 | 406.8 | |
| 0.00 | 0.97 | 0.00 | 1.00 | -12.04 | 239.98 | -58.58 | 107.90 | 0.8790 | 350.0 | 316.5 | |
| 0.00 | 1.24 | 0.00 | 1.24 | -9.36 | 240.41 | -58.16 | 105.04 | 0.8699 | -732.0 | -613.0 | |
| 2.57 | -28.00 | 2.71 | -28.00 | -12.21 | 239.26 | -59.31 | 107.88 | 0.8850 | 456.8 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.33 | -9.27 | 240.14 | -58.42 | 104.87 | 0.8719 | -640.0 | -496.6 | |
| 4.25 | -28.00 | 4.49 | -28.00 | -11.94 | 239.18 | -59.39 | 107.55 | 0.8851 | 244.3 | 999999 | |
| 0.27 | -28.00 | 0.28 | -28.00 | -11.64 | 239.04 | -59.52 | 107.19 | 0.8855 | -386.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.64 | -9.43 | 239.44 | -59.12 | 104.87 | 0.8779 | -603.0 | -589.3 | |
| 1.24 | -28.00 | 1.35 | -28.00 | -11.78 | 238.31 | -60.26 | 107.14 | 0.8914 | -370.8 | 999999 | |
| 4.52 | 30.91 | 4.80 | 32.62 | -10.25 | 238.53 | -60.04 | 105.53 | 0.8867 | -711.2 | -529.9 | |
| 3.01 | -38.00 | 3.19 | -38.00 | -9.97 | 238.55 | -60.01 | 105.22 | 0.8860 | -663.8 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.91 | -10.63 | 238.22 | -60.35 | 105.86 | 0.8898 | -428.0 | -438.7 | |
| 0.00 | 3.90 | 0.00 | 4.30 | -11.56 | 237.70 | -60.87 | 106.74 | 0.8955 | -576.0 | -535.2 | |
| 0.00 | 1.59 | 0.00 | 1.82 | -12.71 | 237.05 | -61.52 | 107.80 | 0.9024 | -486.0 | -449.7 | |
| 0.00 | 1.06 | 0.00 | 1.20 | -12.47 | 237.14 | -61.42 | 107.58 | 0.9013 | -608.0 | -519.8 | |
| 0.00 | 1.06 | 0.00 | 1.19 | -11.24 | 237.17 | -61.39 | 106.26 | 0.8988 | -592.0 | -523.7 | |
| 3.90 | 369.20 | 4.64 | 446.33 | -12.78 | 235.82 | -62.75 | 107.56 | 0.9111 | -593.3 | -218.3 | |
| 1.06 | -45.00 | 1.23 | -45.00 | -11.40 | 236.33 | -62.24 | 106.21 | 0.9051 | -725.1 | 999999 | |
| 1.68 | -45.00 | 2.05 | -45.00 | -12.24 | 235.02 | -63.54 | 106.78 | 0.9155 | -481.5 | 999999 | |
| 48.10 | -45.00 | 57.37 | -45.00 | -10.92 | 235.30 | -63.27 | 105.44 | 0.9115 | -611.7 | 999999 | |
| 7.71 | -45.00 | 9.63 | -45.00 | -12.65 | 234.48 | -64.08 | 107.08 | 0.9198 | -547.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.10 | -12.17 | 234.49 | -64.08 | 106.58 | 0.9190 | -381.0 | -340.1 | |
| 0.00 | 0.97 | 0.00 | 1.12 | -8.38 | 235.76 | -62.81 | 102.81 | 0.9043 | -462.0 | -392.1 | |
| 0.00 | 0.97 | 0.00 | 1.22 | -11.89 | 234.19 | -64.38 | 106.20 | 0.9205 | -183.0 | -171.7 | |
| 2.04 | -45.00 | 2.63 | -45.00 | -12.71 | 233.66 | -64.91 | 106.94 | 0.9251 | -70.1 | 999999 | |
| 0.00 | 2.57 | 0.00 | 3.26 | -10.21 | 233.51 | -65.05 | 104.27 | 0.9224 | 314.0 | 270.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
