SDO HMI 2014-09-22 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.63 | 0.00 | 4.93 | 15.91 | 258.43 | -40.14 | 73.62 | 0.6484 | 533.1 | 472.9 | |
|
previous
or next observation for the same group /

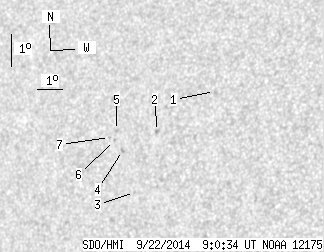

back to the solar disc SDO HMI 2014-09-22 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.50 | 17.60 | 261.12 | -37.44 | 70.32 | 0.6177 | 107.0 | 134.0 | |
| 0.00 | 1.77 | 0.00 | 1.14 | 16.22 | 259.16 | -39.41 | 73.00 | 0.6397 | 623.0 | 560.0 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 14.32 | 258.65 | -39.91 | 76.07 | 0.6428 | 517.0 | 407.1 | |
| 0.00 | 1.51 | 0.00 | 0.98 | 15.54 | 257.89 | -40.68 | 74.31 | 0.6546 | 769.0 | 597.8 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 16.13 | 257.49 | -41.07 | 73.51 | 0.6605 | 666.0 | 564.5 | |
| 0.00 | 0.80 | 0.00 | 0.52 | 15.82 | 257.49 | -41.08 | 73.97 | 0.6601 | 528.0 | 482.2 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 15.89 | 257.26 | -41.31 | 73.90 | 0.6630 | 522.0 | 338.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
