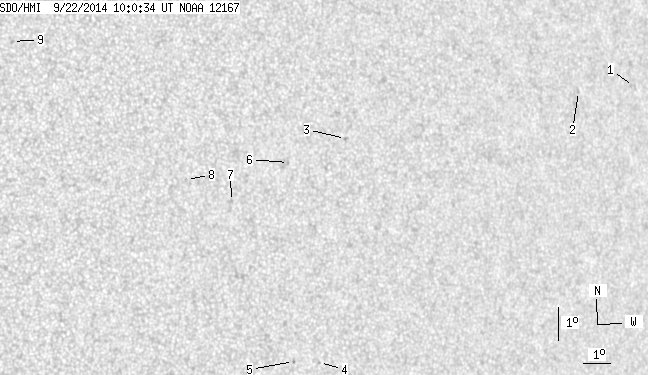

SDO HMI 2014-09-22 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.13 | 0.00 | 8.22 | 8.05 | 335.25 | 37.23 | 274.16 | 0.5985 | 192.3 | 53.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.37 | 0.00 | 2.42 | 9.27 | 344.82 | 46.80 | 276.11 | 0.7258 | -40.0 | -111.3 | |
| 0.00 | 1.42 | 0.00 | 0.98 | 9.32 | 342.42 | 44.40 | 276.15 | 0.6967 | -628.0 | -470.8 | |
| 0.00 | 1.42 | 0.00 | 0.85 | 8.64 | 333.06 | 35.04 | 275.01 | 0.5720 | -753.0 | -602.2 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 1.97 | 331.67 | 33.65 | 263.01 | 0.5601 | 738.0 | 570.0 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 2.06 | 330.73 | 32.71 | 262.89 | 0.5464 | -350.0 | -405.5 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 8.06 | 330.90 | 32.88 | 273.96 | 0.5410 | 572.0 | 488.5 | |
| 0.00 | 1.77 | 0.00 | 1.02 | 7.02 | 328.78 | 30.76 | 271.89 | 0.5099 | 691.0 | 650.5 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 7.78 | 327.25 | 29.24 | 273.35 | 0.4867 | 692.0 | 568.3 | |
| 0.00 | 1.51 | 0.00 | 0.82 | 12.25 | 321.70 | 23.68 | 284.42 | 0.4070 | 809.0 | 629.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
