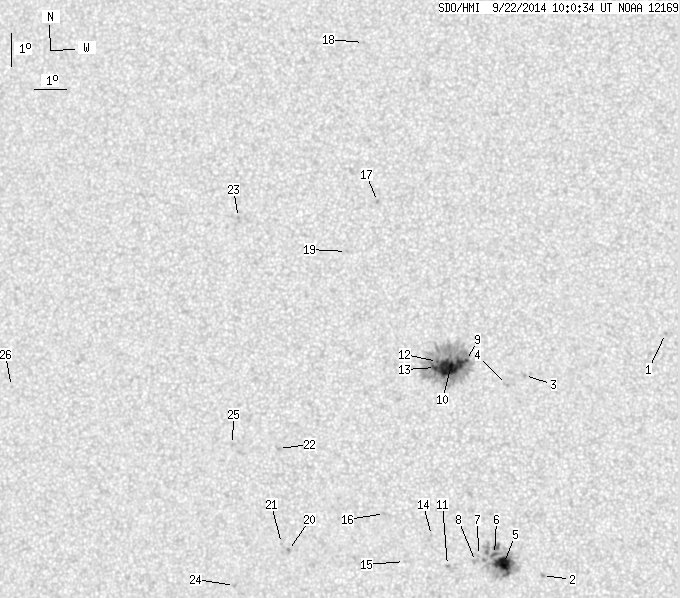

SDO HMI 2014-09-22 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.82 | 274.27 | 25.95 | 137.50 | 9.02 | 290.19 | -7.83 | 77.86 | 0.1482 | -684.2 | -424.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.66 | 12.07 | 296.52 | -1.50 | 16.26 | 0.0918 | -908.0 | -768.1 | |
| 0.00 | 2.04 | 0.00 | 1.01 | 4.76 | 292.82 | -5.20 | 113.48 | 0.0989 | 1198.0 | 919.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 10.78 | 292.20 | -5.82 | 56.57 | 0.1200 | -955.0 | -741.9 | |
| 0.00 | 2.30 | 0.00 | 1.15 | 10.50 | 291.65 | -6.37 | 60.77 | 0.1256 | -893.0 | -706.8 | |
| 14.97 | 82.10 | 7.47 | 40.95 | 5.11 | 291.63 | -6.39 | 106.55 | 0.1161 | -1282.6 | -609.4 | |
| 1.42 | -5.00 | 0.71 | -5.00 | 5.38 | 291.36 | -6.66 | 103.71 | 0.1195 | -1079.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 5.34 | 290.87 | -7.15 | 103.04 | 0.1278 | -494.0 | -413.6 | |
| 0.00 | 2.66 | 0.00 | 1.33 | 5.16 | 290.78 | -7.24 | 104.24 | 0.1301 | -682.0 | -591.6 | |
| 1.15 | 163.68 | 0.58 | 82.11 | 11.21 | 290.40 | -7.62 | 60.47 | 0.1502 | -1052.5 | -415.5 | |
| 29.76 | -9.00 | 14.92 | -9.00 | 10.99 | 289.91 | -8.11 | 63.18 | 0.1559 | -1260.3 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 5.03 | 289.93 | -8.09 | 103.60 | 0.1449 | -815.0 | -645.2 | |
| 1.24 | -9.00 | 0.62 | -9.00 | 11.16 | 289.50 | -8.52 | 63.27 | 0.1635 | -905.0 | 999999 | |
| 3.28 | -9.00 | 1.65 | -9.00 | 10.98 | 289.44 | -8.58 | 64.43 | 0.1630 | -1018.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 5.92 | 289.43 | -8.59 | 96.97 | 0.1504 | 712.0 | 515.3 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 5.12 | 288.61 | -9.41 | 101.06 | 0.1666 | 776.0 | 560.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 6.56 | 287.97 | -10.04 | 92.18 | 0.1742 | 865.0 | 542.1 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 15.97 | 287.42 | -10.59 | 48.34 | 0.2376 | -821.0 | -676.1 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 20.84 | 286.66 | -11.36 | 37.39 | 0.3044 | -777.0 | -624.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 14.43 | 286.52 | -11.50 | 55.84 | 0.2344 | -875.0 | -748.0 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 5.38 | 285.03 | -12.98 | 96.62 | 0.2262 | 1043.0 | 934.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 5.58 | 284.81 | -13.21 | 95.60 | 0.2295 | 853.0 | 630.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 8.44 | 284.64 | -13.38 | 83.12 | 0.2316 | 945.0 | 842.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 15.37 | 283.01 | -15.01 | 59.19 | 0.2921 | -922.0 | -795.8 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 4.27 | 283.38 | -14.64 | 99.97 | 0.2571 | 762.0 | 582.1 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 8.51 | 283.19 | -14.83 | 83.30 | 0.2559 | 852.0 | 582.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 10.00 | 276.00 | -22.01 | 80.71 | 0.3756 | 701.0 | 418.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
