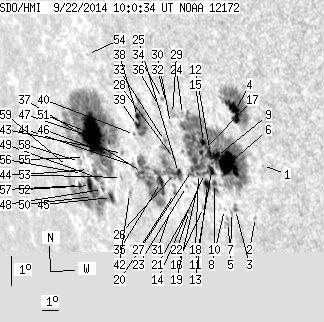

SDO HMI 2014-09-22 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.65 | 943.53 | 164.34 | 993.23 | -11.14 | 238.74 | -59.28 | 106.75 | 0.8810 | -8.2 | -70.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.54 | -10.81 | 245.20 | -52.82 | 108.31 | 0.8265 | -278.0 | -246.1 | |
| 0.00 | 1.15 | 0.00 | 1.04 | -12.53 | 244.35 | -53.67 | 110.00 | 0.8390 | 430.0 | 390.3 | |
| 0.62 | 3.19 | 0.58 | 2.96 | -12.39 | 243.34 | -54.68 | 109.49 | 0.8475 | 632.9 | 648.9 | |
| 16.74 | 64.48 | 14.87 | 57.07 | -9.23 | 244.14 | -53.88 | 106.12 | 0.8321 | 759.1 | 431.2 | |
| 0.00 | 1.68 | 0.00 | 1.57 | -12.51 | 243.08 | -54.94 | 109.54 | 0.8500 | 550.0 | 505.0 | |
| 29.76 | 300.07 | 27.27 | 279.93 | -10.93 | 243.39 | -54.63 | 107.85 | 0.8432 | 832.2 | 203.4 | |
| 0.00 | 3.99 | 0.00 | 3.77 | -12.86 | 242.75 | -55.27 | 109.83 | 0.8538 | 514.0 | 484.2 | |
| 0.00 | 0.80 | 0.00 | 0.75 | -12.45 | 242.72 | -55.30 | 109.36 | 0.8530 | 503.0 | 439.7 | |
| 4.61 | -6.00 | 4.28 | -6.00 | -10.77 | 242.79 | -55.23 | 107.48 | 0.8481 | 596.5 | 999999 | |
| 1.59 | -6.00 | 1.51 | -6.00 | -11.66 | 242.42 | -55.60 | 108.37 | 0.8535 | 574.8 | 999999 | |
| 3.90 | -6.00 | 3.67 | -6.00 | -11.25 | 242.38 | -55.64 | 107.90 | 0.8529 | 428.5 | 999999 | |
| 3.19 | -6.00 | 2.99 | -6.00 | -10.71 | 242.48 | -55.54 | 107.32 | 0.8507 | 449.1 | 999999 | |
| 4.78 | -6.00 | 4.57 | -6.00 | -11.73 | 242.01 | -56.00 | 108.33 | 0.8572 | 386.5 | 999999 | |
| 0.27 | -6.00 | 0.25 | -6.00 | -11.39 | 241.95 | -56.06 | 107.93 | 0.8569 | 244.3 | 999999 | |
| 2.83 | -6.00 | 2.67 | -6.00 | -10.40 | 242.19 | -55.83 | 106.87 | 0.8525 | 473.8 | 999999 | |
| 0.00 | 2.21 | 0.00 | 2.16 | -12.51 | 241.54 | -56.48 | 109.05 | 0.8631 | 391.0 | 262.0 | |
| 1.77 | -6.00 | 1.68 | -6.00 | -10.73 | 241.98 | -56.03 | 107.19 | 0.8550 | 210.8 | 999999 | |
| 0.97 | -6.00 | 0.94 | -6.00 | -11.43 | 241.61 | -56.41 | 107.86 | 0.8599 | 250.1 | 999999 | |
| 0.00 | 3.19 | 0.00 | 3.10 | -11.86 | 241.42 | -56.60 | 108.29 | 0.8625 | 286.0 | 201.0 | |
| 1.42 | -6.00 | 1.38 | -6.00 | -11.34 | 241.30 | -56.72 | 107.67 | 0.8623 | -494.7 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.62 | -12.52 | 240.79 | -57.22 | 108.84 | 0.8692 | 438.0 | 294.3 | |
| 0.00 | 3.37 | 0.00 | 3.37 | -12.73 | 240.66 | -57.35 | 109.02 | 0.8708 | 181.0 | 167.7 | |
| 0.00 | 1.42 | 0.00 | 1.40 | -11.93 | 240.77 | -57.25 | 108.17 | 0.8680 | 327.0 | 270.8 | |
| 0.00 | 1.86 | 0.00 | 1.79 | -9.62 | 241.23 | -56.79 | 105.71 | 0.8589 | -91.0 | -94.9 | |
| 2.66 | 105.57 | 2.65 | 109.57 | -11.52 | 240.44 | -57.57 | 107.62 | 0.8698 | 351.0 | -270.9 | |
| 0.27 | -25.00 | 0.27 | -25.00 | -11.58 | 240.19 | -57.83 | 107.61 | 0.8719 | 193.0 | 999999 | |
| 0.53 | 3.99 | 0.54 | 4.04 | -12.23 | 239.97 | -58.05 | 108.27 | 0.8752 | 424.3 | 326.9 | |
| 0.00 | 1.68 | 0.00 | 1.68 | -11.09 | 240.35 | -57.67 | 107.11 | 0.8696 | 235.0 | 198.3 | |
| 0.00 | 6.73 | 0.00 | 6.58 | -9.65 | 240.66 | -57.36 | 105.59 | 0.8639 | -398.0 | -431.3 | |
| 0.00 | 1.51 | 0.00 | 1.48 | -9.98 | 240.45 | -57.57 | 105.90 | 0.8663 | -367.0 | -377.3 | |
| 0.00 | 0.44 | 0.00 | 0.46 | -12.79 | 239.53 | -58.49 | 108.74 | 0.8799 | 231.0 | 219.8 | |
| 0.00 | 0.97 | 0.00 | 0.96 | -9.37 | 240.39 | -57.63 | 105.19 | 0.8655 | -684.0 | -575.7 | |
| 0.00 | 2.57 | 0.00 | 2.58 | -10.57 | 239.93 | -58.09 | 106.41 | 0.8719 | 104.0 | -18.1 | |
| 0.00 | 1.33 | 0.00 | 1.31 | -9.23 | 240.20 | -57.82 | 104.99 | 0.8669 | -359.0 | -392.7 | |
| 9.74 | -25.00 | 10.11 | -25.00 | -11.96 | 239.23 | -58.78 | 107.76 | 0.8804 | 172.3 | 999999 | |
| 0.00 | 1.24 | 0.00 | 1.23 | -9.51 | 239.95 | -58.07 | 105.23 | 0.8695 | -340.0 | -283.9 | |
| 0.80 | -25.00 | 0.85 | -25.00 | -11.76 | 238.21 | -59.80 | 107.24 | 0.8879 | -340.1 | 999999 | |
| 1.86 | 31.97 | 1.94 | 33.23 | -9.97 | 238.51 | -59.51 | 105.36 | 0.8821 | -562.7 | -542.4 | |
| 2.57 | -38.00 | 2.69 | -38.00 | -10.26 | 238.42 | -59.60 | 105.66 | 0.8834 | -621.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.22 | -10.58 | 238.13 | -59.89 | 105.93 | 0.8862 | -462.0 | -431.2 | |
| 0.00 | 2.66 | 0.00 | 2.88 | -11.59 | 237.72 | -60.30 | 106.93 | 0.8913 | -632.0 | -564.8 | |
| 0.00 | 1.95 | 0.00 | 2.17 | -12.54 | 237.10 | -60.92 | 107.79 | 0.8978 | -495.0 | -481.4 | |
| 0.00 | 1.51 | 0.00 | 1.66 | -11.28 | 237.14 | -60.88 | 106.43 | 0.8951 | -559.0 | -503.8 | |
| 0.00 | 1.86 | 0.00 | 2.09 | -12.08 | 236.77 | -61.25 | 107.19 | 0.8992 | -482.0 | -440.0 | |
| 3.72 | 378.81 | 4.35 | 448.96 | -12.81 | 235.81 | -62.21 | 107.73 | 0.9075 | -529.7 | -214.2 | |
| 1.77 | -45.00 | 2.01 | -45.00 | -11.41 | 236.25 | -61.77 | 106.34 | 0.9018 | -676.2 | 999999 | |
| 1.15 | -45.00 | 1.30 | -45.00 | -11.02 | 236.40 | -61.62 | 105.95 | 0.9000 | -791.6 | 999999 | |
| 0.62 | -45.00 | 0.74 | -45.00 | -12.62 | 235.28 | -62.73 | 107.39 | 0.9107 | -593.4 | 999999 | |
| 2.21 | -45.00 | 2.65 | -45.00 | -12.27 | 235.03 | -62.99 | 106.95 | 0.9118 | -496.6 | 999999 | |
| 0.80 | -45.00 | 0.98 | -45.00 | -12.93 | 234.52 | -63.49 | 107.52 | 0.9163 | -578.1 | 999999 | |
| 48.80 | -45.00 | 57.10 | -45.00 | -10.89 | 235.32 | -62.70 | 105.54 | 0.9075 | -578.5 | 999999 | |
| 6.11 | -45.00 | 7.49 | -45.00 | -12.58 | 234.47 | -63.55 | 107.14 | 0.9161 | -502.0 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.43 | -12.07 | 234.56 | -63.46 | 106.62 | 0.9147 | -416.0 | -398.0 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -8.34 | 235.83 | -62.19 | 102.91 | 0.8996 | -382.0 | -441.3 | |
| 0.00 | 0.80 | 0.00 | 0.97 | -11.71 | 234.44 | -63.58 | 106.20 | 0.9149 | -50.0 | -79.1 | |
| 0.00 | 3.54 | 0.00 | 4.39 | -12.25 | 234.06 | -63.96 | 106.69 | 0.9183 | -61.0 | -52.5 | |
| 1.59 | -45.00 | 2.01 | -45.00 | -12.68 | 233.65 | -64.37 | 107.04 | 0.9217 | -62.6 | 999999 | |
| 0.00 | 3.01 | 0.00 | 3.72 | -11.88 | 234.01 | -64.00 | 106.28 | 0.9180 | -185.0 | -121.6 | |
| 0.00 | 0.97 | 0.00 | 1.25 | -12.15 | 233.02 | -64.99 | 106.33 | 0.9248 | 343.0 | 309.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
