SDO HMI 2014-09-22 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.49 | 0.00 | 4.66 | -13.87 | 286.18 | -11.29 | 154.39 | 0.4121 | 726.1 | 535.4 | |
|
previous
or next observation for the same group /

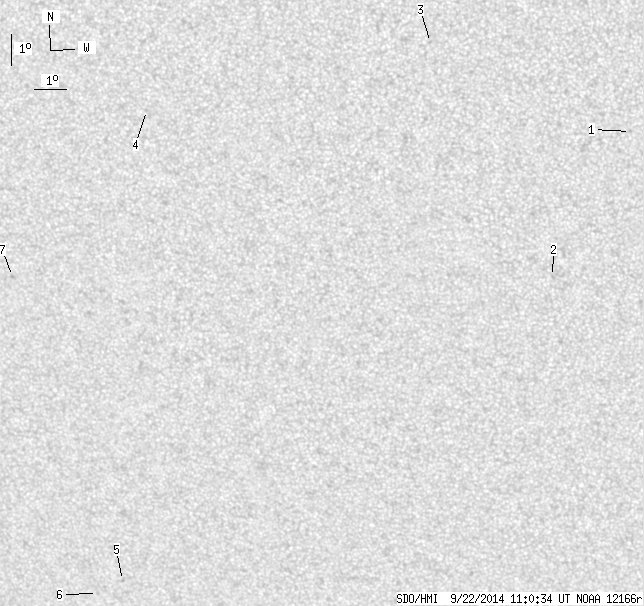

back to the solar disc SDO HMI 2014-09-22 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.59 | -8.43 | 298.00 | 0.53 | 181.95 | 0.2681 | 759.0 | 558.8 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -13.02 | 295.59 | -1.88 | 174.68 | 0.3459 | 752.0 | 624.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -5.70 | 291.94 | -5.53 | 156.45 | 0.2410 | 832.0 | 609.1 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -7.98 | 283.14 | -14.33 | 136.19 | 0.3555 | 729.0 | 520.6 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -23.43 | 281.13 | -16.34 | 152.81 | 0.5671 | 654.0 | 529.5 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -23.92 | 280.21 | -17.26 | 151.96 | 0.5793 | 642.0 | 509.2 | |
| 0.00 | 1.68 | 0.00 | 0.94 | -13.39 | 278.54 | -18.93 | 137.35 | 0.4678 | 715.0 | 447.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
