SDO HMI 2014-09-22 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.42 | 0.00 | 8.85 | 7.59 | 333.40 | 35.93 | 273.02 | 0.5826 | 178.4 | 153.7 | |
|
previous
or next observation for the same group /

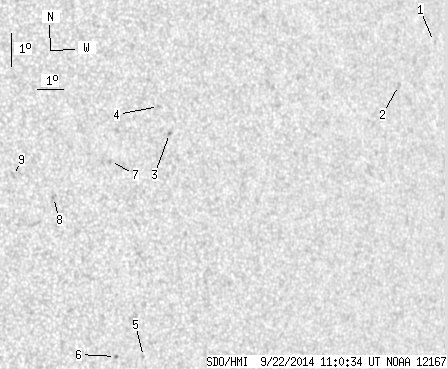

back to the solar disc SDO HMI 2014-09-22 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.32 | 10.52 | 344.14 | 46.67 | 277.84 | 0.7242 | -310.0 | -294.2 | |
| 0.00 | 2.92 | 0.00 | 2.03 | 9.34 | 342.38 | 44.91 | 276.18 | 0.7030 | -224.0 | -297.0 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 8.62 | 333.10 | 35.63 | 274.99 | 0.5803 | -761.0 | -636.2 | |
| 0.00 | 1.33 | 0.00 | 0.80 | 9.46 | 332.78 | 35.31 | 276.45 | 0.5760 | 751.0 | 593.5 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 1.98 | 331.70 | 34.23 | 263.21 | 0.5683 | 714.0 | 624.7 | |
| 0.00 | 1.33 | 0.00 | 0.79 | 2.06 | 330.68 | 33.21 | 263.04 | 0.5536 | -614.0 | -586.4 | |
| 0.00 | 1.77 | 0.00 | 1.05 | 7.93 | 330.85 | 33.38 | 273.74 | 0.5482 | 655.0 | 555.3 | |
| 0.00 | 2.83 | 0.00 | 1.64 | 6.99 | 328.72 | 31.25 | 271.86 | 0.5172 | 810.0 | 576.0 | |
| 0.00 | 2.30 | 0.00 | 1.31 | 7.73 | 327.36 | 29.89 | 273.28 | 0.4966 | 585.0 | 528.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
