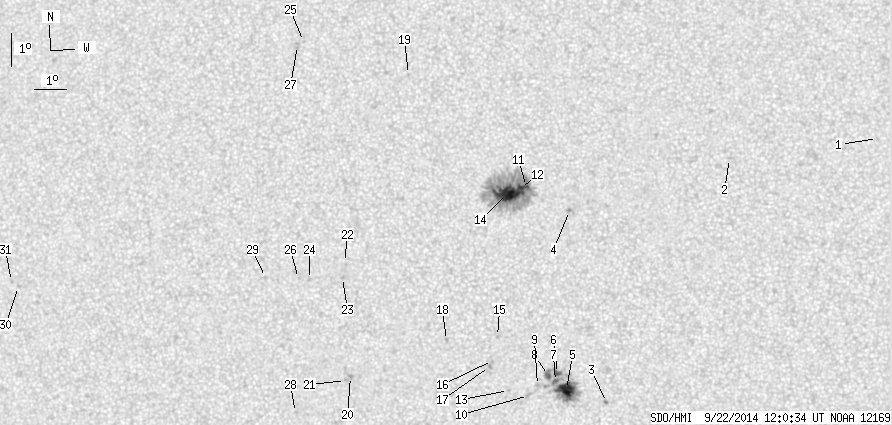

SDO HMI 2014-09-22 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.94 | 254.21 | 28.44 | 127.25 | 9.12 | 289.84 | -7.08 | 78.52 | 0.1371 | -552.3 | -389.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.40 | 12.68 | 301.16 | 4.24 | 323.82 | 0.1227 | -752.0 | -583.8 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 12.10 | 296.59 | -0.33 | 3.65 | 0.0888 | -912.0 | -553.5 | |
| 0.00 | 1.42 | 0.00 | 0.70 | 4.74 | 292.87 | -4.05 | 119.53 | 0.0812 | 1020.0 | 893.9 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 10.50 | 291.69 | -5.23 | 55.78 | 0.1089 | -1032.0 | -889.2 | |
| 16.38 | 66.41 | 8.15 | 33.06 | 5.12 | 291.66 | -5.26 | 109.86 | 0.0976 | -1237.2 | -677.9 | |
| 2.13 | -5.00 | 1.06 | -5.00 | 5.60 | 291.38 | -5.54 | 104.36 | 0.0996 | -987.0 | 999999 | |
| 1.24 | -5.00 | 0.62 | -5.00 | 5.35 | 291.32 | -5.60 | 106.51 | 0.1018 | -1037.0 | 999999 | |
| 2.13 | -5.00 | 1.06 | -5.00 | 5.53 | 291.11 | -5.81 | 104.27 | 0.1045 | -974.5 | 999999 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 5.23 | 290.78 | -6.14 | 106.16 | 0.1115 | -706.0 | -612.6 | |
| 0.00 | 3.10 | 0.00 | 1.55 | 4.92 | 290.51 | -6.41 | 107.98 | 0.1175 | -917.0 | -613.0 | |
| 2.04 | 152.38 | 1.02 | 76.25 | 11.21 | 290.35 | -6.57 | 56.74 | 0.1348 | -1109.7 | -433.8 | |
| 4.07 | -11.00 | 2.04 | -11.00 | 11.15 | 290.17 | -6.75 | 57.83 | 0.1369 | -1154.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 5.07 | 289.90 | -7.02 | 105.37 | 0.1269 | -782.0 | -546.1 | |
| 28.95 | -11.00 | 14.49 | -11.00 | 10.99 | 289.77 | -7.15 | 60.21 | 0.1414 | -1195.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 6.69 | 289.54 | -7.38 | 92.30 | 0.1282 | 814.0 | 673.9 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 5.96 | 289.40 | -7.52 | 97.75 | 0.1320 | 741.0 | 675.6 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 5.78 | 289.31 | -7.61 | 99.00 | 0.1340 | 976.0 | 837.8 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 6.54 | 287.99 | -8.94 | 92.67 | 0.1552 | 844.0 | 694.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.54 | 286.56 | -10.36 | 52.73 | 0.2198 | -755.0 | -592.2 | |
| 0.00 | 2.21 | 0.00 | 1.12 | 5.40 | 285.05 | -11.87 | 97.25 | 0.2073 | 1074.0 | 889.6 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 5.27 | 284.90 | -12.02 | 97.72 | 0.2102 | 783.0 | 636.0 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 8.82 | 284.78 | -12.14 | 80.76 | 0.2115 | 276.0 | 436.2 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 8.37 | 284.73 | -12.19 | 82.92 | 0.2114 | 889.0 | 717.3 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 8.28 | 283.71 | -13.21 | 83.71 | 0.2286 | 787.0 | 535.4 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 15.46 | 283.16 | -13.76 | 56.82 | 0.2751 | -826.0 | -521.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 8.30 | 283.36 | -13.56 | 83.74 | 0.2344 | 814.0 | 694.2 | |
| 0.00 | 3.36 | 0.00 | 1.73 | 15.34 | 282.98 | -13.94 | 57.54 | 0.2766 | -660.0 | -677.4 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 4.27 | 283.37 | -13.55 | 100.88 | 0.2390 | 739.0 | 630.5 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 8.30 | 282.33 | -14.59 | 84.05 | 0.2518 | 746.0 | 455.7 | |
| 0.00 | 1.42 | 0.00 | 0.76 | 7.74 | 274.43 | -22.49 | 86.76 | 0.3813 | 774.0 | 648.4 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 7.88 | 274.19 | -22.73 | 86.40 | 0.3852 | 725.0 | 576.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
