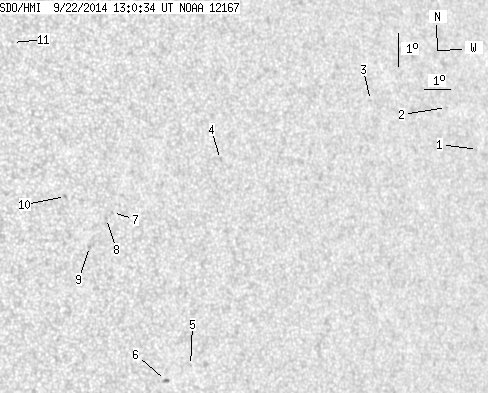

SDO HMI 2014-09-22 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.93 | 0.00 | 7.90 | 6.91 | 332.17 | 35.80 | 271.98 | 0.5822 | 93.4 | 15.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.45 | 8.00 | 343.62 | 47.25 | 274.39 | 0.7316 | -309.0 | -256.0 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 9.38 | 342.47 | 46.09 | 276.25 | 0.7174 | -614.0 | -518.0 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 9.86 | 339.28 | 42.91 | 276.94 | 0.6780 | -531.0 | -458.5 | |
| 0.00 | 1.59 | 0.00 | 0.98 | 8.56 | 333.13 | 36.75 | 274.90 | 0.5961 | -681.0 | -548.8 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 2.45 | 331.56 | 35.19 | 264.30 | 0.5808 | 585.0 | 525.1 | |
| 0.00 | 2.12 | 0.00 | 1.28 | 2.07 | 330.63 | 34.26 | 263.37 | 0.5686 | -723.0 | -615.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 7.25 | 329.00 | 32.63 | 272.45 | 0.5374 | 625.0 | 517.9 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 7.09 | 328.77 | 32.40 | 272.13 | 0.5341 | 793.0 | 631.5 | |
| 0.00 | 1.42 | 0.00 | 0.82 | 6.28 | 328.10 | 31.73 | 270.56 | 0.5248 | 795.0 | 576.8 | |
| 0.00 | 1.42 | 0.00 | 0.82 | 7.84 | 327.37 | 30.99 | 273.52 | 0.5131 | 701.0 | 603.3 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 12.58 | 325.99 | 29.62 | 283.10 | 0.4973 | 386.0 | 315.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
