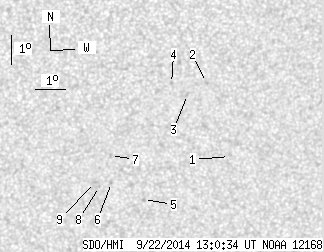

SDO HMI 2014-09-22 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.89 | 0.00 | 6.34 | -20.68 | 311.55 | 15.17 | 208.04 | 0.5248 | -101.9 | -75.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-22 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.26 | -21.26 | 314.30 | 17.92 | 211.48 | 0.5515 | 510.0 | 484.0 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -18.72 | 313.24 | 16.86 | 212.60 | 0.5119 | 547.0 | 483.8 | |
| 0.00 | 1.77 | 0.00 | 1.02 | -19.10 | 312.64 | 16.27 | 211.28 | 0.5120 | 754.0 | 532.2 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -18.71 | 312.08 | 15.70 | 210.80 | 0.5027 | 742.0 | 623.4 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -22.63 | 311.55 | 15.18 | 206.20 | 0.5494 | -533.0 | -508.2 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -22.00 | 310.40 | 14.03 | 205.00 | 0.5340 | -739.0 | -533.2 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -21.08 | 310.28 | 13.91 | 205.61 | 0.5209 | -807.0 | -607.8 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -22.13 | 310.02 | 13.64 | 204.29 | 0.5333 | -653.0 | -578.1 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -21.99 | 309.83 | 13.46 | 204.13 | 0.5302 | -738.0 | -601.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
