SDO HMI 2014-09-22 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.36 | 253.45 | 28.61 | 126.77 | 8.89 | 289.74 | -6.64 | 77.21 | 0.1295 | -562.9 | -381.9 | |
|
previous
or next observation for the same group /

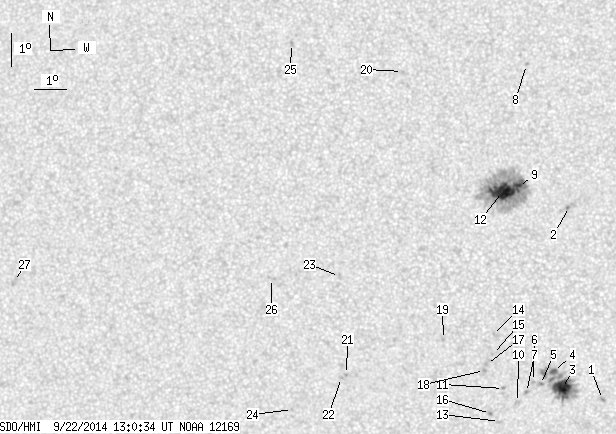

back to the solar disc SDO HMI 2014-09-22 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 0.92 | 4.77 | 292.87 | -3.50 | 122.88 | 0.0728 | 1052.0 | 874.7 | |
| 0.00 | 3.01 | 0.00 | 1.50 | 10.57 | 291.82 | -4.56 | 51.57 | 0.1002 | -912.0 | -835.2 | |
| 20.54 | 65.24 | 10.21 | 32.45 | 5.09 | 291.66 | -4.72 | 112.29 | 0.0889 | -1177.2 | -679.4 | |
| 2.12 | -3.00 | 1.06 | -3.00 | 5.60 | 291.38 | -4.99 | 105.88 | 0.0904 | -978.0 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.28 | 5.20 | 290.99 | -5.38 | 108.60 | 0.0990 | -826.0 | -724.4 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 5.29 | 290.78 | -5.60 | 107.10 | 0.1021 | -651.0 | -553.9 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 4.96 | 290.57 | -5.81 | 109.48 | 0.1074 | -995.0 | -808.6 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 14.85 | 290.40 | -5.97 | 36.37 | 0.1704 | -736.0 | -550.8 | |
| 7.17 | 145.36 | 3.58 | 72.65 | 11.15 | 290.24 | -6.13 | 55.34 | 0.1281 | -1122.3 | -456.4 | |
| 0.00 | 2.74 | 0.00 | 1.37 | 4.65 | 290.29 | -6.08 | 111.18 | 0.1137 | -508.0 | -330.3 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 5.07 | 289.87 | -6.51 | 106.55 | 0.1183 | -461.0 | -412.6 | |
| 27.53 | -9.00 | 13.76 | -9.00 | 11.00 | 289.75 | -6.63 | 58.32 | 0.1337 | -1204.2 | 999999 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 4.08 | 289.75 | -6.62 | 113.86 | 0.1263 | 596.0 | 538.5 | |
| 0.00 | 0.53 | 0.00 | 0.26 | 6.69 | 289.51 | -6.86 | 92.50 | 0.1193 | 567.0 | 597.3 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 6.09 | 289.52 | -6.85 | 97.53 | 0.1202 | 887.0 | 681.8 | |
| 0.00 | 1.77 | 0.00 | 0.88 | 4.31 | 289.48 | -6.89 | 111.29 | 0.1291 | 861.0 | 640.6 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 5.79 | 289.34 | -7.03 | 99.75 | 0.1241 | 974.0 | 830.4 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 5.60 | 289.28 | -7.09 | 101.09 | 0.1257 | 1046.0 | 816.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 6.52 | 288.02 | -8.35 | 93.08 | 0.1452 | 895.0 | 676.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 14.58 | 286.51 | -9.86 | 51.25 | 0.2134 | -570.0 | -324.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 5.41 | 285.06 | -11.31 | 97.61 | 0.1979 | 1066.0 | 896.1 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 5.31 | 284.91 | -11.46 | 97.95 | 0.2007 | 822.0 | 645.1 | |
| 0.00 | 2.12 | 0.00 | 1.07 | 8.35 | 284.78 | -11.60 | 82.73 | 0.2014 | 740.0 | 568.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 4.31 | 283.41 | -12.96 | 101.23 | 0.2291 | 846.0 | 704.4 | |
| 0.00 | 2.21 | 0.00 | 1.14 | 15.35 | 282.94 | -13.43 | 56.59 | 0.2695 | -891.0 | -763.1 | |
| 0.00 | 2.39 | 0.00 | 1.22 | 8.23 | 282.66 | -13.71 | 84.07 | 0.2369 | 635.0 | 629.8 | |
| 0.00 | 5.40 | 0.00 | 2.88 | 7.85 | 274.47 | -21.91 | 86.44 | 0.3719 | 158.0 | 248.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
